INCH-POUND
MIL-A-22641/22A
28 January 2013
SUPERSEDING
MIL-A-22641/22
21 September 1978
MILITARY SPECIFICATION SHEET
ADAPTERS, COAXIAL TO WAVEGUIDE (DOUBLE RIDGE)
(BANDWIDTH RATIO 2.4:1) (SERIES SMA TO WAVEGUIDE - CLASS 5)
INACTIVE FOR NEW DESIGN AFTER
8 MAY 1998
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the antenna described herein
shall consist of this specification sheet and MIL-DTL-22641.

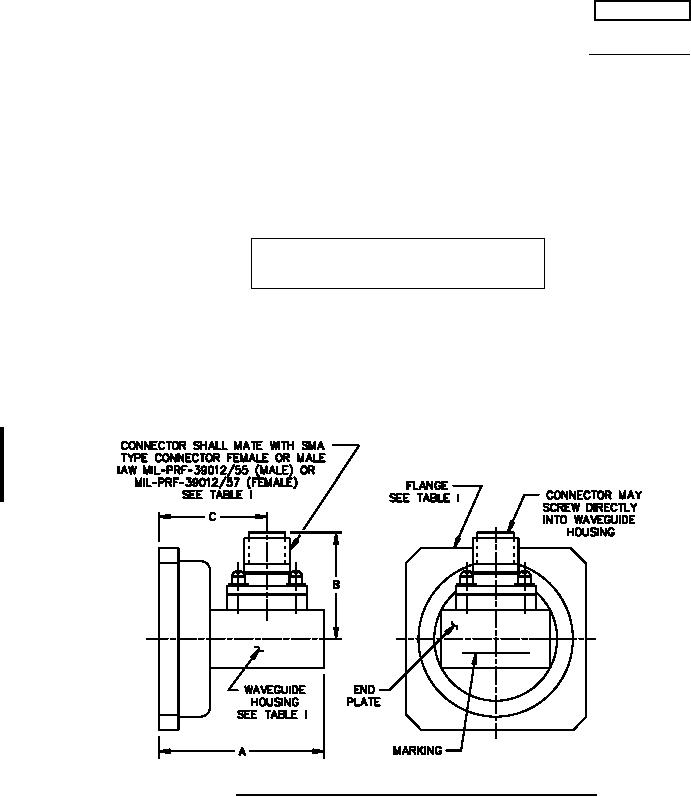

FIGURE 1. Adapters, coaxial to double ridge waveguide (class 5).
REQUIREMENTS:
Design, construction, and physical dimensions: See figure 1 and table I.
Operating temperature range: -54º to +125º
Frequency range:
See table I.
VSWR:
See table I.
