MIL-DTL-22641/16H

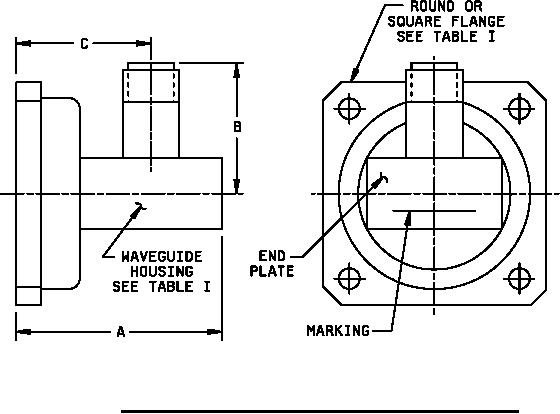

FIGURE 2. Configuration for PIN M22641/16-23 through M22641/16-30.
REQUIREMENTS:
Design, construction, and physical dimensions: See figures 1 and 2 and table I.
Frequency range: See table I.
VSWR: See table I. VSWR over 50 percent frequency range shall be VSWR measured over any
continuous frequency band of width equal to 50 percent of the entire frequency range, chosen at the
discretion of the tester.
RF insertion loss: See table I.
Radio frequency connector: The coaxial connector shall be compatible and mate with series N plug in
accordance with MIL-PRF-39012/1.
Flange, waveguide: See table I.
Housing, waveguide: See table I.
