INCH-POUND
MIL-DTL-22641/20D
9 March 2010
SUPERSEDING
MIL-DTL-22641/20C
31 January 2000
DETAIL SPECIFICATION SHEET
ADAPTERS, COAXIAL TO WAVEGUIDE
(SERIES SMA TO WAVEGUIDE - CLASS 5)
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the adapters described herein shall
consist of this document and the latest issue of MIL-DTL-22641.

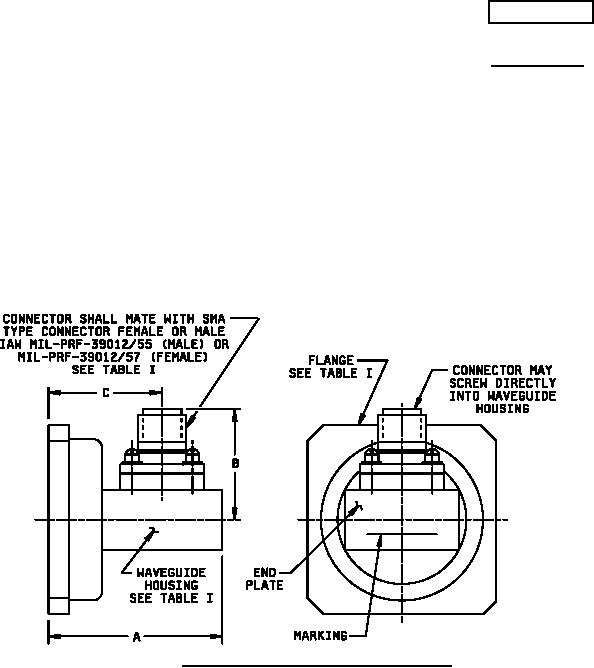

FIGURE 1. Adapters, coaxial to waveguide (class 5).
REQUIREMENTS:
Design, construction, and physical dimensions: See figure 1 and table I.
Operating temperature range: -54C to +125C.
Frequency range: See table I.
VSWR: See table I. VSWR over 50 percent frequency range shall be VSWR measured over any
continuous frequency band of width equal to 50 percent of the entire frequency range, chosen at the
discretion of the tester.
RF insertion loss: See table I.
AMSC N/A
FSC 5985
