INCH-POUND
MIL-DTL-23971/12A
23 April 2002
SUPERSEDING
MIL-P-23971/12
22 February 1980
DETAIL SPECIFICATION SHEET
POWER DIVIDER/COMBINERS, QUADRATURE
STRIPLINE
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The requirements for acquiring the power divider described herein
shall consist of this specification sheet and MIL-DTL-23971.
Dimensions
Inches
Millimeters
Max
Min
Max
Min
A
B
C
See Table I
D
E
F
G
H
NOTES:
J
.065
.045
1.65
1.14
1. Dimensions are in inches.
K
N/A
.15
N/A
3.8
2. Metric equivalents are given for general
L
.06
.04
1.5
1.1
information only.
M .105 dia
.093 dia
2.67 dia
2.36 dia
N
.14
N/A
3.56
N/A
P
.11
N/A
2.79
N/A

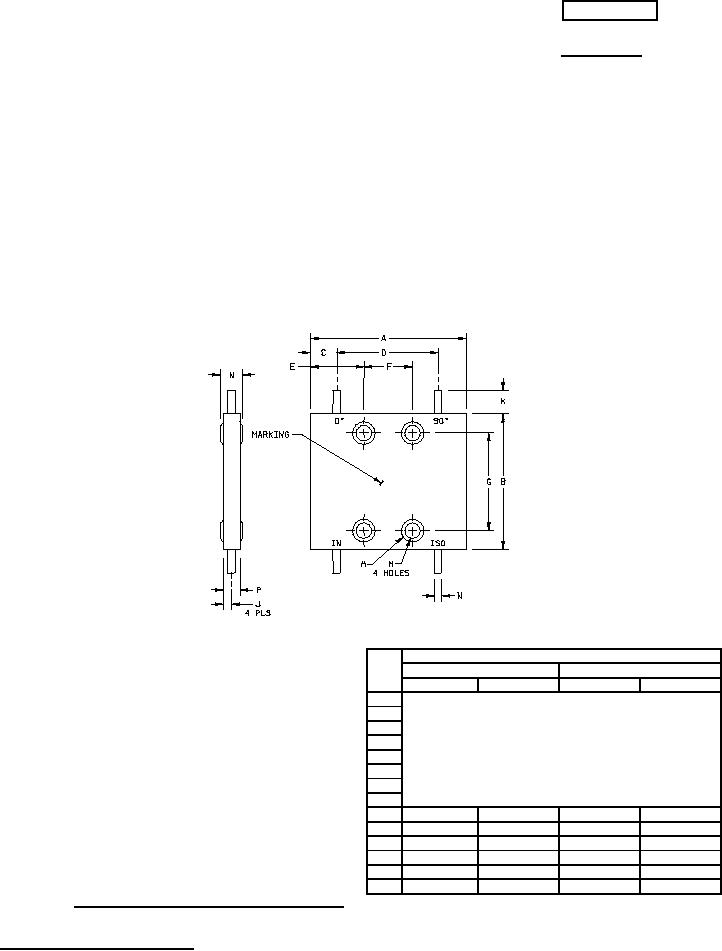

FIGURE 1. Dimensions and config. dash nos. 01 and 02.
AMSC N/A
1 of 3
FSC 5985
