MIL-DTL-23971/2D
Inches
mm
.01
.3
.03
.8
.04
1.0
.010
.25
.156
3.96
.17
4.4
.188
4.77
.40
10.2
.42
10.7
.50
12.7
.56
14.2
.75
19.0
.84
21.3
1.125
28.57
1.25
31.8
1.64
41.6
3.08
78.2
3.625
92.07
4.06
103.1
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.

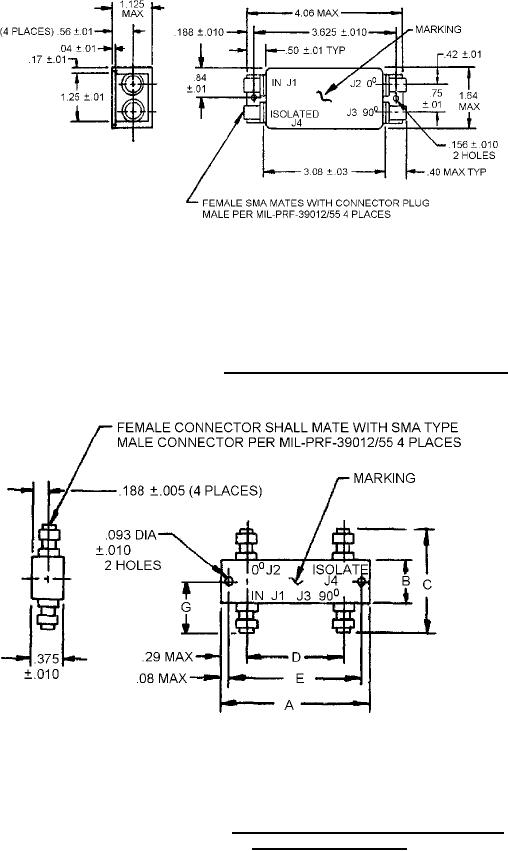

FIGURE 2. Dimensions and configuration, dash number 05.
Inches
mm
.005
.1
.010
.25
.08
2.03
.093
2.36
.188
4.78
.29
7.37
.375
9.53
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
FIGURE 3. Dimensions and configuration, dash numbers
06, 07, 08, 09, 11, and 12.
2
