INCH-POUND
MIL-DTL-23971/9B
3 May 2012
SUPERSEDING
MIL-DTL-23971/9A
23 April 2002
DETAIL SPECIFICATION SHEET
POWER DIVIDER, N-WAY, 0 DEGREES, SMA CONNECTORS
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the power divider described herein
shall consist of this specification sheet and MIL-DTL-23971.
Dimensions
Inches
Millimeters
Max
Min
Max
Min
A
2.00
1.88
50.8
47.8
B
1.43
1.41
36.3
35.8
C
.98
.96
24.9
24.4
D
.45
.43
11.4
10.9
E
.255
.245
6.5
6.2
F
4.45 dia
4.25 dia
113.0 dia
108.0 dia
G
.43
.41
10.9
10.4
H
.51 dia
.49 dia
13.0 dia
12.4 dia
J
6.78
6.77
172.2
172.0
K
7.20
7.08
182.9
179.8
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.

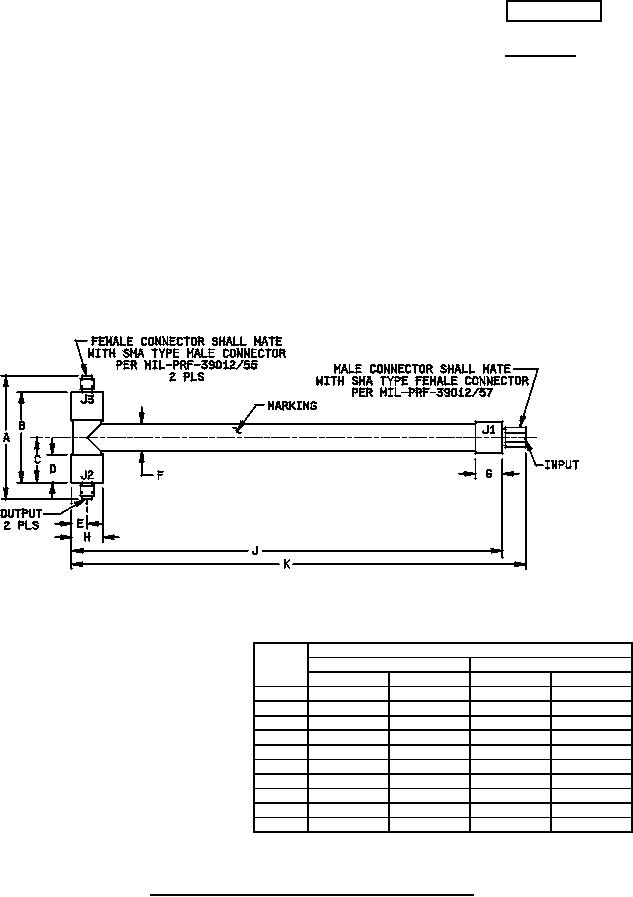

FIGURE 1. Dimensions and configuration, 2-way dash number 01.
