INCH-POUND
MIL-DTL-24215/8A
7 June 2002
SUPERSEDING
MIL-A-24215/8
22 February 1973
DETAIL SPECIFICATION SHEET
ATTENUATORS, VARIABLE COAXIAL,
FREQUENCY RANGE DC TO 2 GHZ (SMA)
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The requirements for acquiring the attenuators described
herein shall consist of this specification and MIL-DTL-24215.
Inches
Millimeters
Max
Min
Max
Min
A
.766
.734
19.46
18.64
B
.391
.359
9.93
9.12
C
.141 dia
.109 dia
3.58
2.77
D
1.155 dia
1.145 dia
29.34
29.08
E
1.766
1.734
44.86
44.04
NOTES:
F
.354
.344
8.99
8.74
1. Dimensions are in inches.
G
.766
.734
19.46
18.64
2. Metric equivalents are given for general
H
.910
.900
23.11
22.86
information only.
J
1.328
1.296
33.73
32.92
K
.766
.734
19.46
18.64
L
1.641
1.609
41.68
40.87

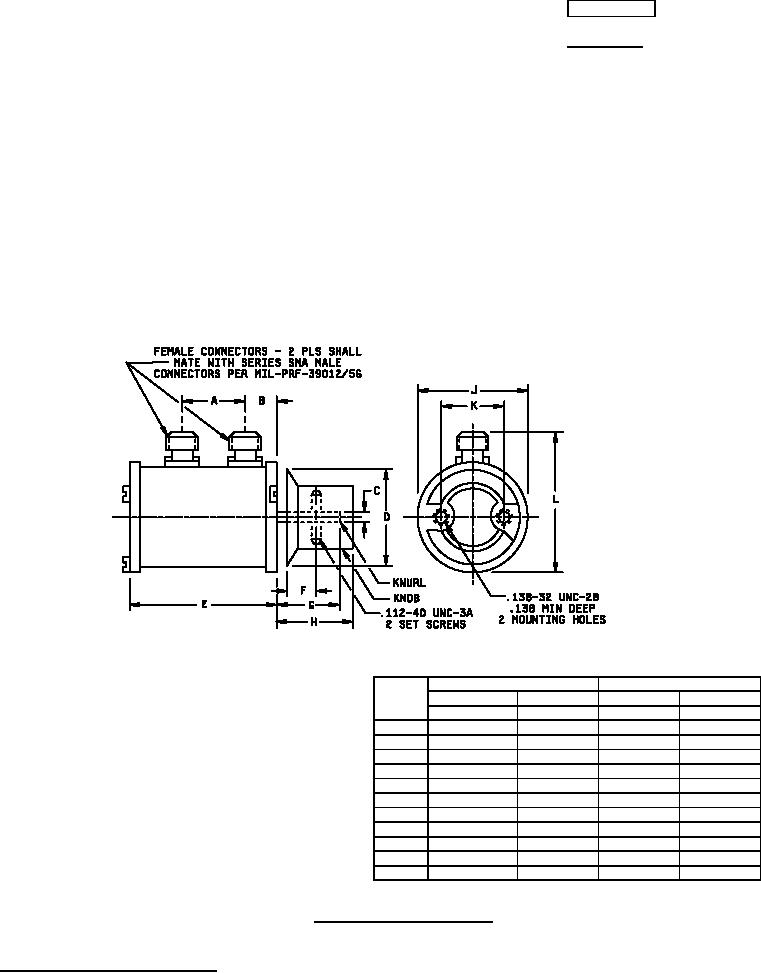

FIGURE 1. Dimensions and configuration.
AMSC N/A
1 of 2
FSC 5985
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
