MIL-DTL-25708/5D
REQUIREMENTS:
Dimensions and configuration: See figure 1.
Materials:
Base: Aluminum alloy in accordance with ASTM B85/B85M, alloy SC84B.
Cover: Suitable material that will resist erosion of impinging particles at velocities up to Mach 2.
Temperature operating range: -55°C to 250°C.
Side loading: 10.5 psig (100 pounds).
Frequency range: 0.700 to 1.220 GHz.
Impedance: 50 ohms nominal.
VSWR:
Antenna:
See figure 2.
Sampling probe: 1.50:1 maximum from 0.900 to 1.220 GHz.

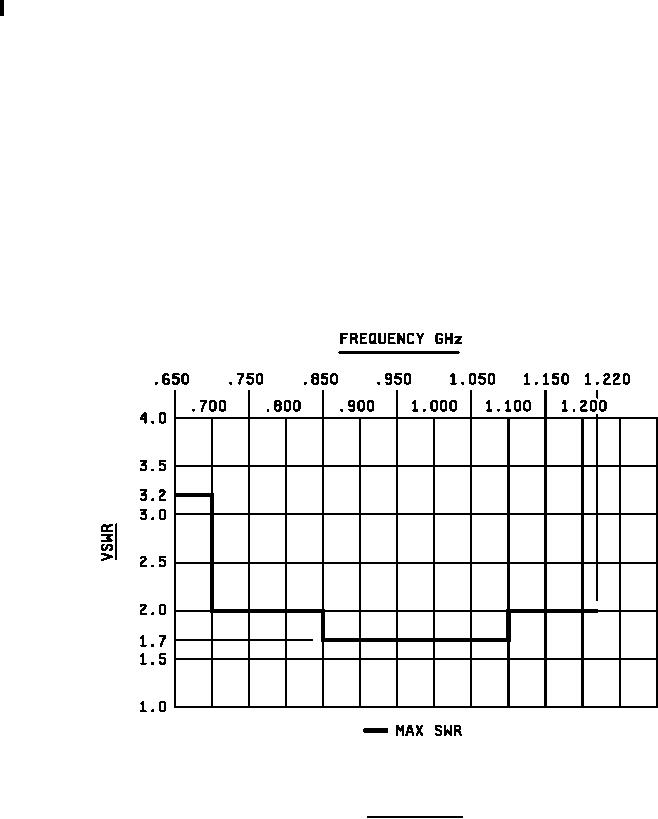

FIGURE 2. Antenna VSWR.
