INCH-POUND
MIL-DTL-39030/4A
14 April 2003
SUPERSEDING
MIL-D-39030/4
27 March 1975
DETAIL SPECIFICATION SHEET
DUMMY LOADS, ELECTRICAL, COAXIAL,
TYPE I (SMA), MEDIUM POWER
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification and MIL-DTL-39030.
Inches
mm
1.25
31.75
2.00
50.80
NOTES:
1. Dimensions are in inches.
2. Millimeters are in parentheses.
3. Metric equivalents are given for general information only.
4. All undimenisoned pictorial configurations are for reference purposes only.

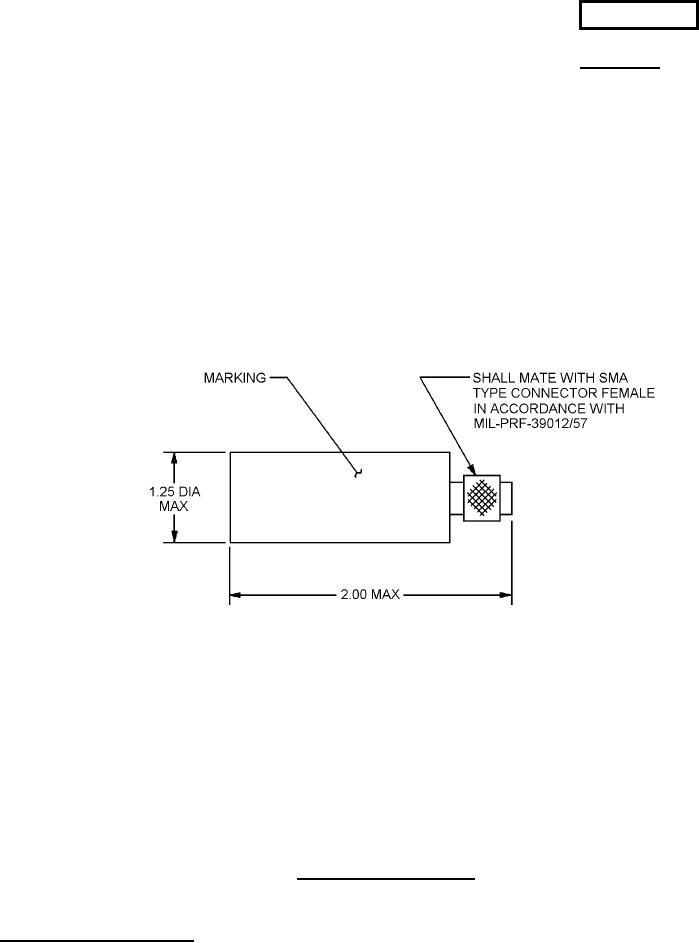

FIGUER 1. Dimensions and configuration.
AMSC N/A
1 of 3
FSC 5985
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
