MIL-DTL-39030/5C

Inches

.25

.010

3.66

.144

6.35

.25

12.7

.50

33.8

1.33

88.9

3.50

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Series TNC pin contact interface in accordance with MIL-STD-348.

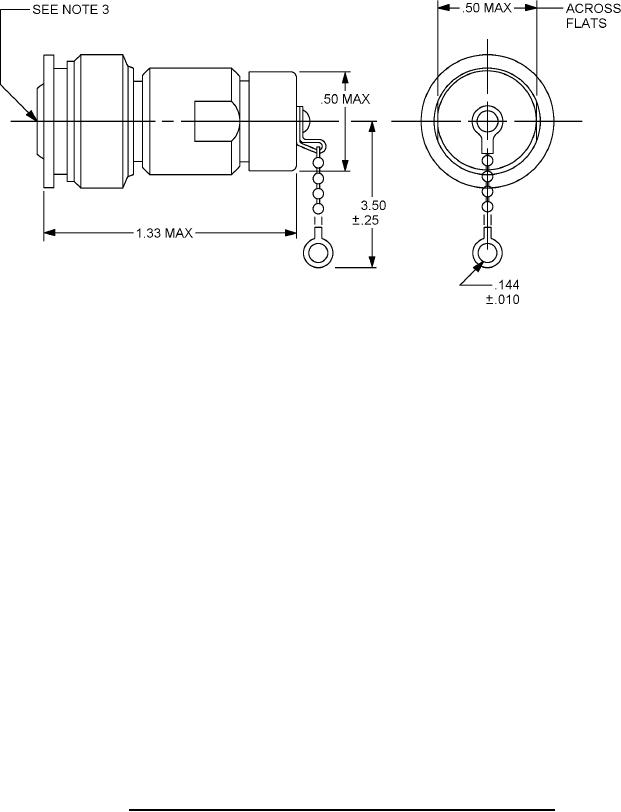

FIGURE 5. Dimensions and configuration, PINs M39030/5-05N and M39030/5-05S.
