MIL-DTL-39030/6C
Dash
A
B
number
max
max
1.51
.38
03
(38.4)
(9.7)
1.64
.70
05
(41.7)
(17.8)
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.

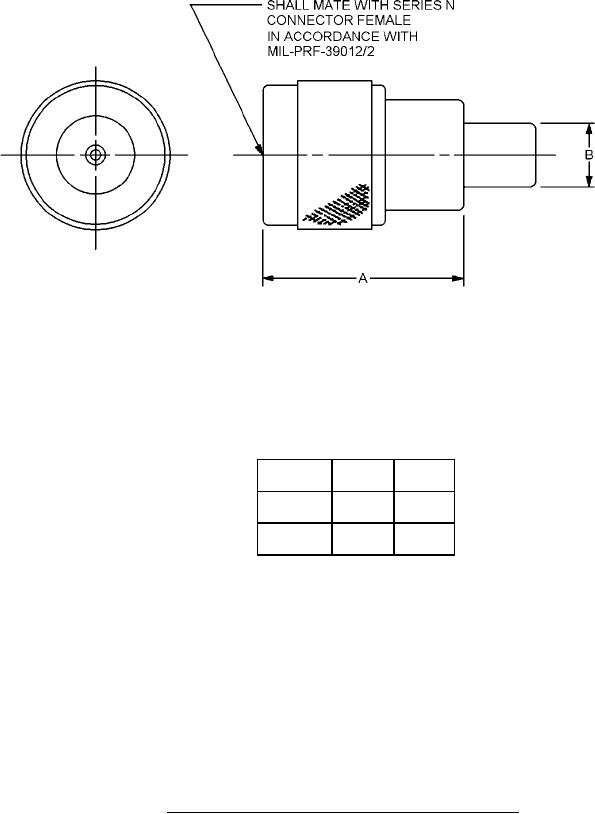

FIGURE 2. Dimensions and configuration, PINs M39030/6-03, and -05.
