INCH-POUND
MIL-DTL-39030/8A
14 April 2003
SUPERSEDING
MIL-D-39030/8
22 December 1980
DETAIL SPECIFICATION SHEET
DUMMY LOAD, ELECTRICAL, COAXIAL,
TYPE IV (TNC), MEDIUM POWER
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification and MIL-DTL-39030.
Inches
mm
1.39
35.3
2.25
57.2
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.

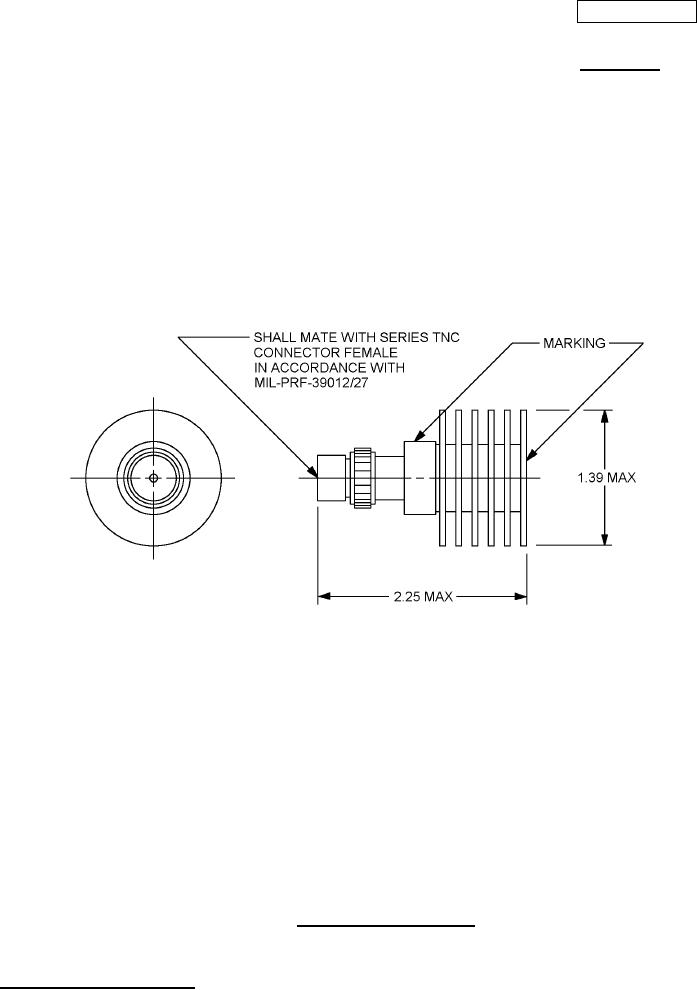

FIGURE 1. Dimensions and configuration.
AMSC N/A
1 of 3
FSC 5985
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
