MIL-DTL-3922/60D
Inches
mm
.002
0.05
.003
0.08
.004
0.10
.005
0.13
.015
0.41
.094
2.39
.250
6.35
NOTES:
1. Dimensions are in inches.
2. Metric equivalents (to the nearest 0.01 mm) are given for general information only and are based upon 1.00
inch = 25.4 mm.
3. Metric equivalents are in parentheses.
4. Roughness of mating surfaces, including seal groove, shall not exceed 63 microinches in accordance with
ASME-B46.1, except that flaws shall be included in the roughness height measurement.

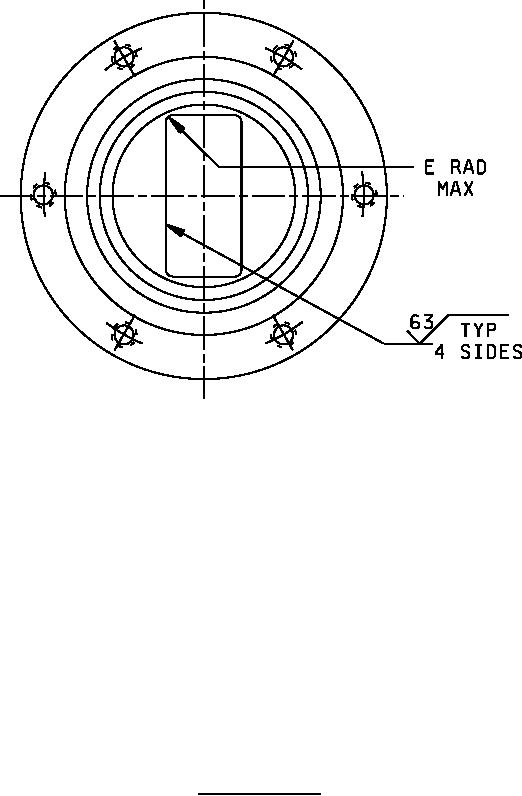

FIGURE 1. Flange configuration - Continued.
