MIL-DTL-3922/61E
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
A
4.085
4.115
103.76
104.52
DIA
DIA
DIA
DIA
B
.205
.215
5.21
5.46
DIA
DIA
DIA
DIA
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only and are based upon 1.00 inch = 25.4 mm.
3. Gasket used with flanges M3922/61-001, M3922/61-002, M3922/61-003, and M3922/61-004.
4. MS PIN MS90064-17.

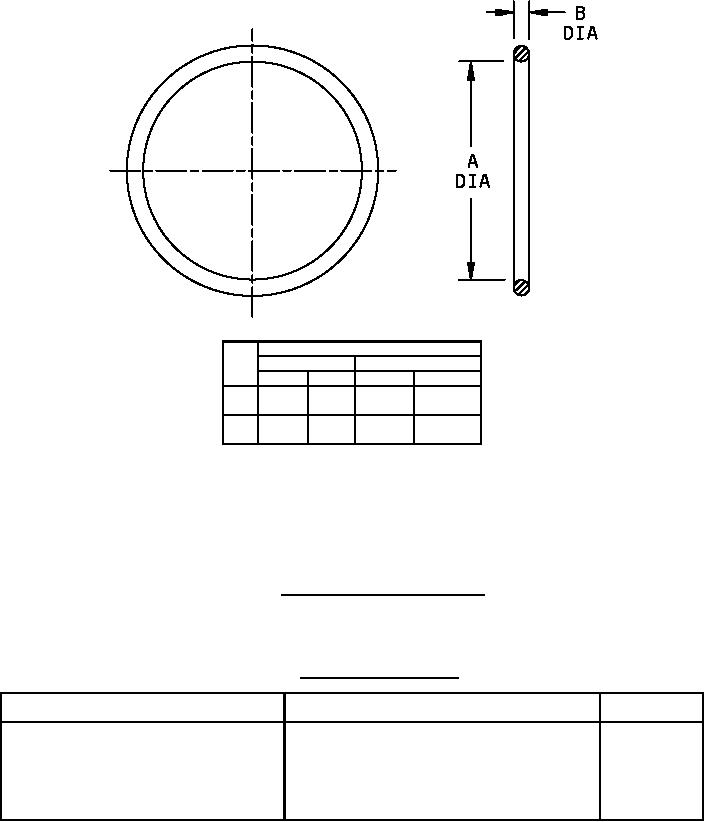

FIGURE 2. Gasket dimensions and configurations.
TABLE II. Materials supplied with flange.
Item
Description
Quantity
Gasket - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Silicone rubber (see figure 2)
1
Hex-head cap screw - - - - - - - - - - - - - - - - - - - -
.250-20 UNC-2A, .750 inch (19.05 mm) long
8
Lockwasher - - - - - - - - - - - - - - - - - - - - - - - - - -
.250 inch (6.35 mm), .046 inch (1.17 mm) thick
8
4
