MIL-DTL-3922/62D
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
A
2.668
2.698
67.77
68.53
DIA
DIA
DIA
DIA
B
.110
.120
2.79
3.05
DIA
DIA
DIA
DIA
NOTES:
1. Dimensions are in inches.
2. Metric equivalents (to the nearest 0.01 mm) are given for general information only
and are based upon 1.00 inch = 25.4 mm.
3. Gasket used with flanges M3922/62-001 and M3922/62-002.
4. Formerly MS PIN MS90064-16.

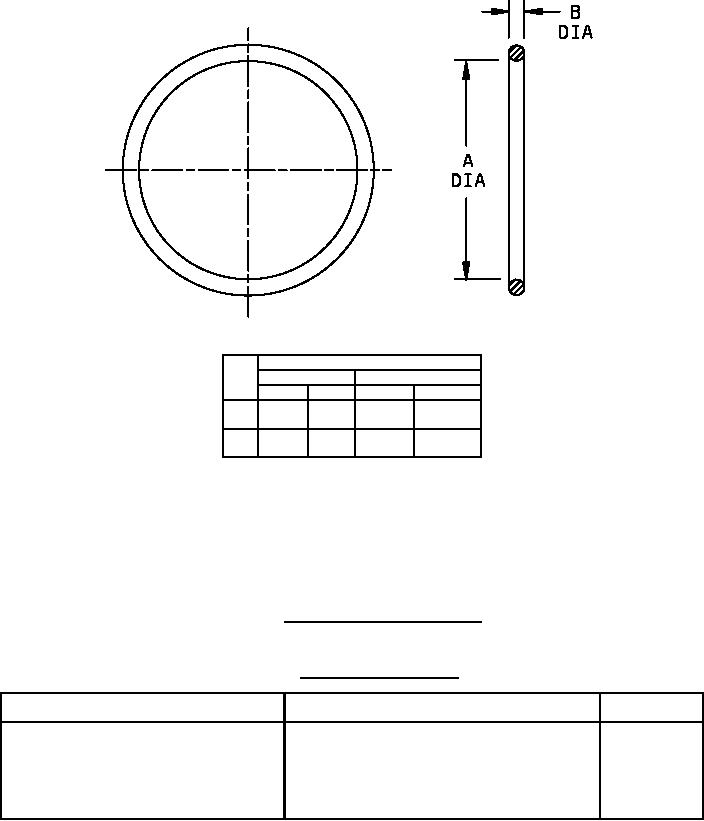

FIGURE 2. Gasket dimensions and configuration.
TABLE II. Materials supplied with flange.
Item
Description
Quantity
Gasket - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Silicone rubber (see figure 2)
1
Socket-head cap screw - - - - - - - - - - - - - - - - - -
.190-32, UNF-2A, .625 inch (15.88 mm) long
8
Lockwasher - - - - - - - - - - - - - - - - - - - - - - - - - -
#10-.047 inch (1.19 mm) thick
8
