MIL-DTL-3928/16B
Dimensions
Inches
Millimeters
Inches
Millimeters
Letter
Letter
Max
Min
Max
Min
Max
Min
Max
Min
A
1.60
---
40.64
---
H
2.34 dia
2.28 dia
59.4 dia
57.9 dia
B
.260
.240
6.60
6.10
J
1.380
1.370
35.05
34.80
C
.62
.56
15.7
14.2
K
.697
.677
17.70
17.20
D
.34
.28
8.6
7.1
L
1.072 dia
1.052 dia
27.22 dia 26.72 dia
E
.130
.120
3.30
3.05
M
.885
.865
22.48
21.97
F
1.560 dia
1.556 dia
39.62 dia 39.52 dia
N
1.78
1.72
45.2
43.7
G
.154 dia
.139 dia
3.91 dia
3.53 dia
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only (1.00 inch = 25.4 mm).
3. Metric equivalents are in parentheses.
4. Unless otherwise specified, tolerances are .010 ( 0.25 mm) for three place decimals and
.03 ( 0.8 mm) for two place decimals.
5. Round corners of case may be squared.

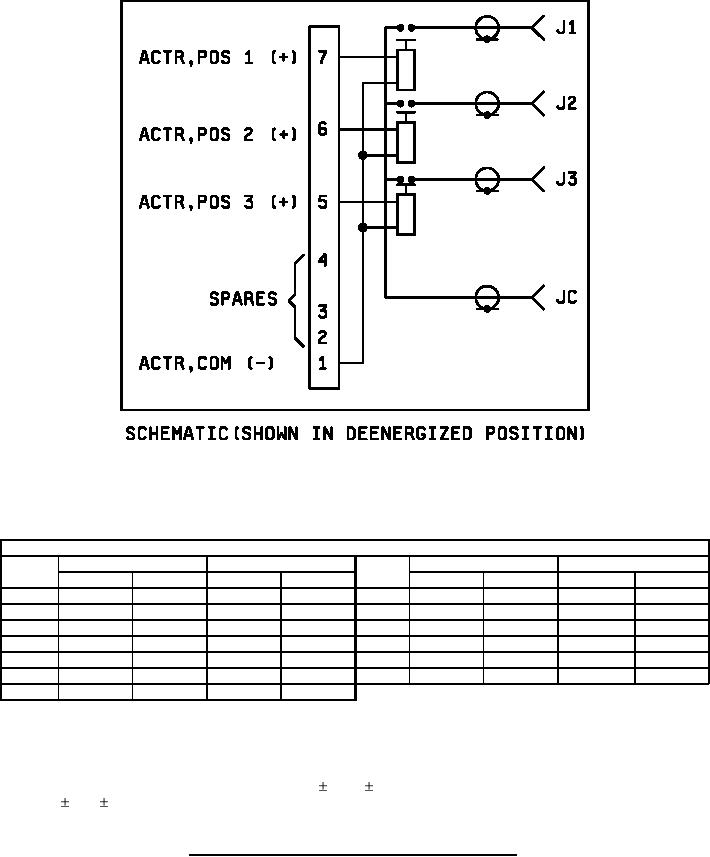

FIGURE 1. Switch configuration and schematic, PIN M3928/16-02 - Continued.
