INCH-POUND
MIL-DTL-3933/16E
7 April 2011
SUPERSEDING
MIL-DTL-3933/16D
10 January 2007
DETAIL SPECIFICATION SHEET
ATTENUATORS, FIXED, SPACE LEVEL, NON SPACE LEVEL
COAXIAL LINE (SMA CONNECTORS),
FREQUENCY RANGE: DC TO 18 GHz, CLASS IV, LOW
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the attenuators described herein
shall consist of this specification sheet and MIL-DTL-3933.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Metric equivalents are in parentheses.
4. Body diameter dimension requirement includes both the diameter of the component body and the
Thickness of any externally attached marking label(s).
5. Widths across coupling nut flats are to accommodate wrench, normal size of .3125 (7.938)
minimum in accordance with FED-STD-H28, appendix 10, wrench openings.
6. Width of coupling nut hex shall be .150 (3.81) minimum.

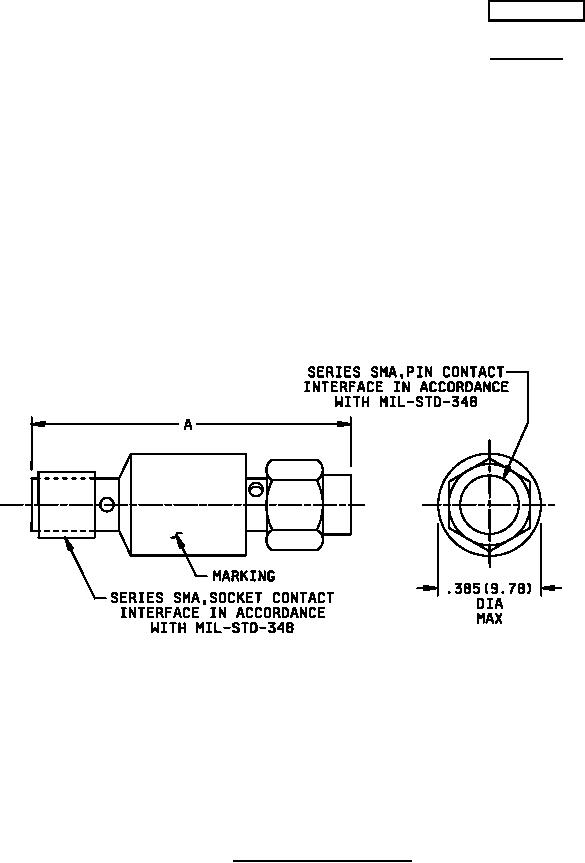

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5985
.
