MS25057D
NOTES:
1. Unless otherwise specified, dimensions are in inches: One place decimal ±.1, two place decimals ±.02.
2. Millimeters are for information only.
3. Remove burrs and sharp edges.

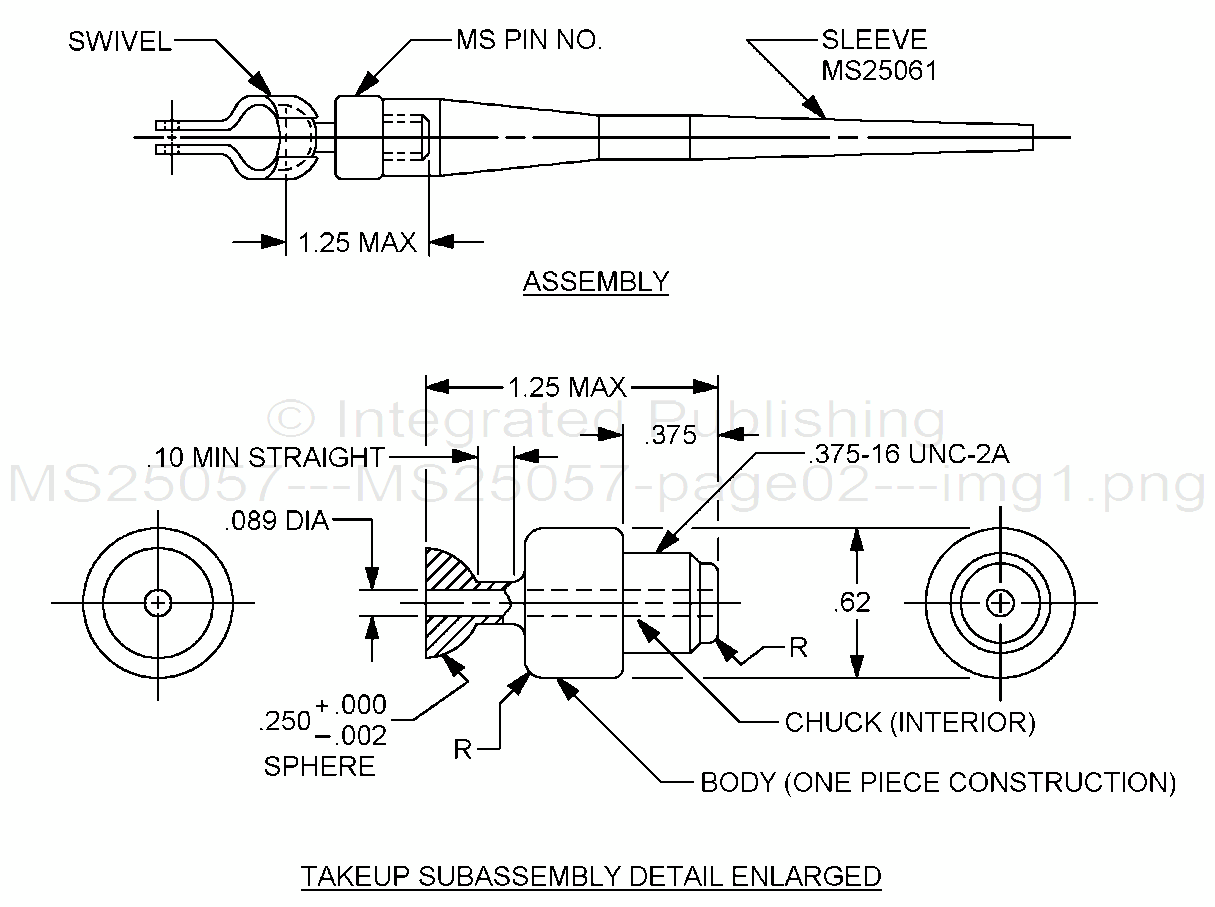

FIGURE 1. Dimensions and configuration - Continued.
2
