DETAIL SPECIFICATION SHEET TAKEUP, TENSION, ANTENNA
This specification sheet is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-7965.
INCH-POUND MS25058C
21 June 2013
SUPERSEDING MS25058B
9 November 2007
INACTIVE FOR NEW DESIGN AFTER 4 JUNE 1999.
NOTE: Detent must be provided to hold locking ring in forward position against windows: 3 pounds, maximum 10 pounds disengaging force.
MS PIN MS25058-1

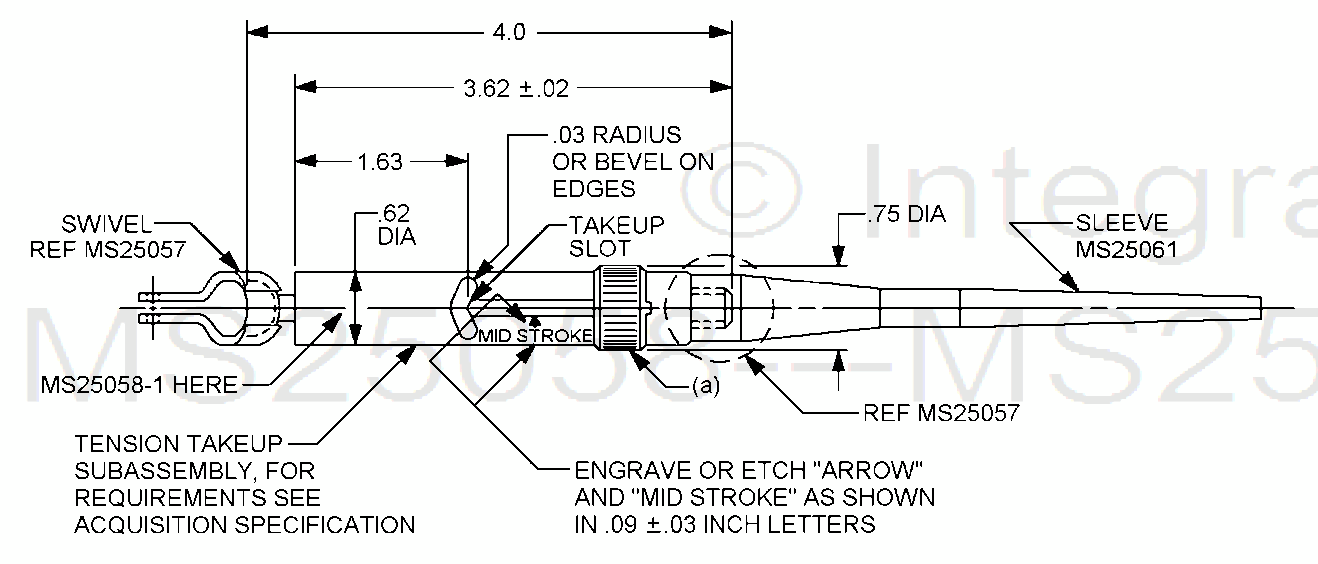

FIGURE 1. Dimensions and configuration.
NOTES:
1. Unless otherwise specified, dimensions are in inches: One place decimal ±.1, two place decimals ±.02.
2. Millimeters are for information only.
3. Remove all burrs and sharp edges.
AMSC N/A FSC 5985
