MIL-DTL-23971/1B
Dimensions
Inches
Millimeters
Max
Min
Max
Min
A
.58
.54
15
14
B
.44
.40
11
10
C
1.19
1.15
30.2
29.2
D
.30
.26
7.6
6.6
E
.11
.07
2.8
1.8
F
.24
.20
6.1
5.1
G
.30
.26
7.6
6.6
H
.18
.14
4.6
3.6
J
.105 dia
.093 dia
2.67 dia
2.36 dia
K
.054
.034
1.37
.86
L
1.442
1.432
36.63
36.37
M
.139
.129
3.53
3.28
N
N/A
.18
N/A
4.6
P
.120
N/A
3.05
N/A
Q
1.65
1.59
41.9
40.4
R
.30
.26
7.6
6.6
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.005 (.13mm) for three place decimals and ±.02 (.5 mm) for two
place decimals.

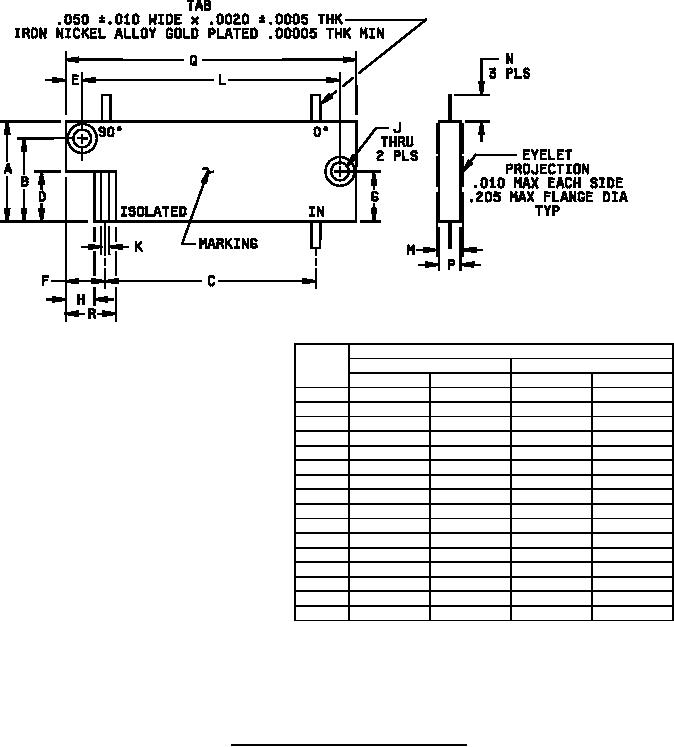

FIGURE 3. Dimensions and configuration, P/N 004.
4
