INCH-POUND
MIL-DTL-23971/14B
23 April 2013
SUPERSEDING
MIL-DTL-23971/14A
21 April 2003
DETAIL SPECIFICATION SHEET
POWER DIVIDER/COMBINERS, N-WAY, 0 DEGREES, FLAT PACK
INACTIVE FOR NEW DESIGN
AFTER 1 APRIL 2008
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-23971.
Inches
mm
.005
0.13
.010
0.25
.018
0.46
.02
0.5
.062
1.57
.08
2.0
.10
2.5
.125
3.18
.25
6.4
.313
7.95
.35
8.9
.38
9.7
.50
12.7
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only and are based upon 1.00 inch = 25.4 mm.

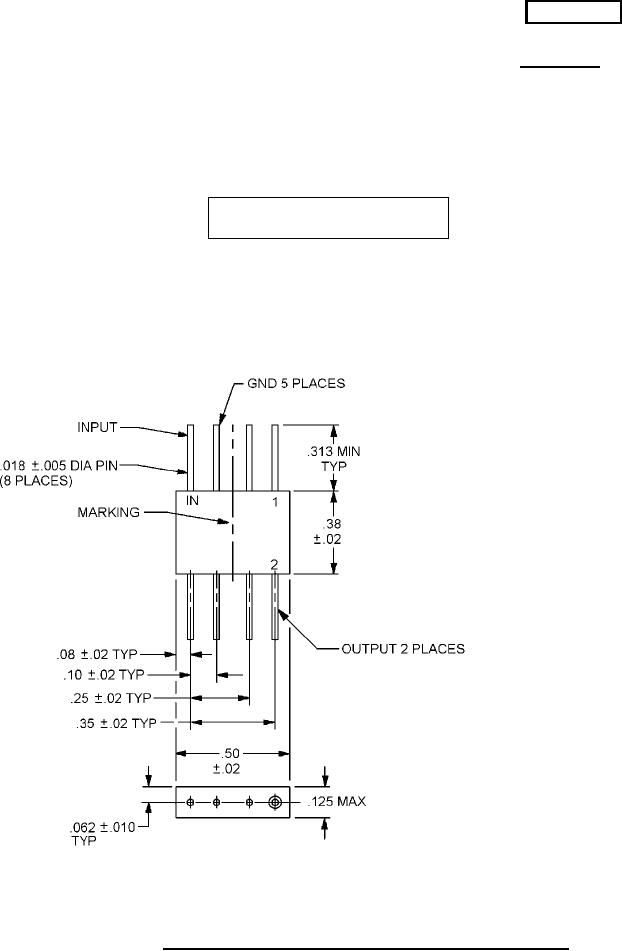

FIGURE 1. Dimensions and configuration, 2-way, dash numbers 01, 02, and 03.
AMSC N/A
FSC 5985
