INCH-POUND
MIL-DTL-24215/10B
26 January 2012
SUPERSEDING
MIL-DTL-24215/10A
7 June 2002
DETAIL SPECIFICATION SHEET
ATTENUATORS, VARIABLE (STEP) COAXIAL,
CLASS 7 (BNC)
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the attenuators described
herein shall consist of this specification sheet and MIL-DTL-24215.
Inches
Millimeters
Max
Min
Max
Min
A
2.06
2.00
52.3
50.8
B
.135
.115
3.43
2.92
C
1.76
1.74
44.7
44.2
D
.65
.59
16.5
15.0
NOTES:
E
8.26
8.24
209.8
209.3
1. Dimensions are in inches.
F
.51
.49
13.0
12.4
2. Metric equivalents are given for general
G
.916
.896
23.27
22.76
information only.
H
9.78
9.72
248.4
246.9
3. Unless otherwise specified, tolerances are ±.010
J
.65
.59
16.5
15.0
(.25 mm) for three place decimals and ±.03
K
1.47
1.41
37.3
35.8
(.76 mm) for two place decimals.
L
1.28
1.22
32.5
31.0
M
2.28
2.22
57.9
56.4

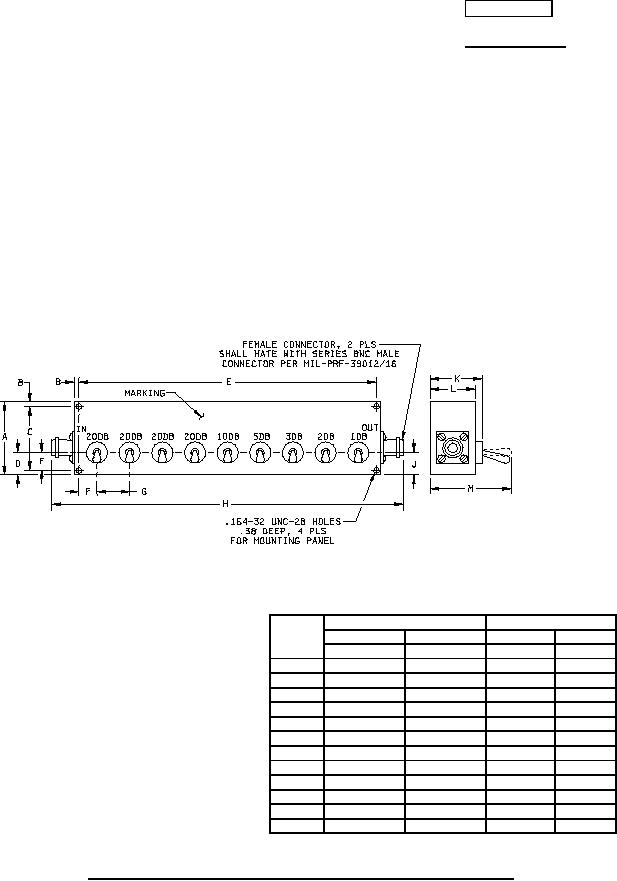

FIGURE 1. Dimensions and configuration for part number M24215/10-001 and 002.
AMSC N/A
FSC 5985
