MIL-DTL-24215/9C
Inches
Millimeters
Max
Min
Max
Min
A
1.78
1.72
45.2
43.7
B
.47
.41
11.9
10.4
NOTES:
C
.09
.03
2.3
.8
1. Dimensions are in inches.
D
.905
.845
22.99
21.46
2. Metric equivalents are given for general
E
---
.190 deep
---
4.83 deep
information only.
F
1.655
1.595
42.04
40.51
G
.09
.03
2.3
.8
3. Unless otherwise specified, tolerance is
±.03 (.8 mm).
H
.53
.47
13.5
11.9
J
.53
.47
13.5
11.9
K
.41
.35
10.4
8.9
L
1.03
.97
26.2
24.6

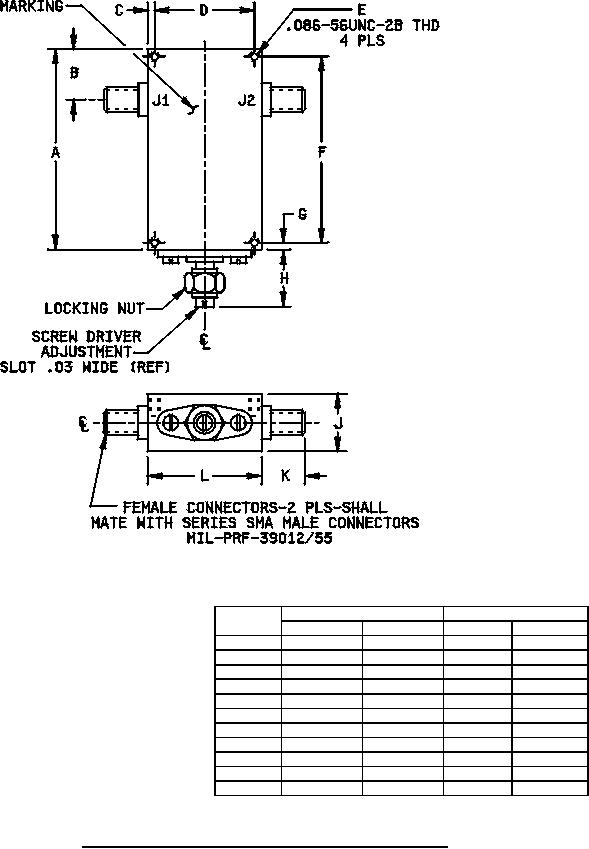

FIGURE 6. Dimensions and configuration for part number M24215/9-006.
