MIL-DTL-25879G

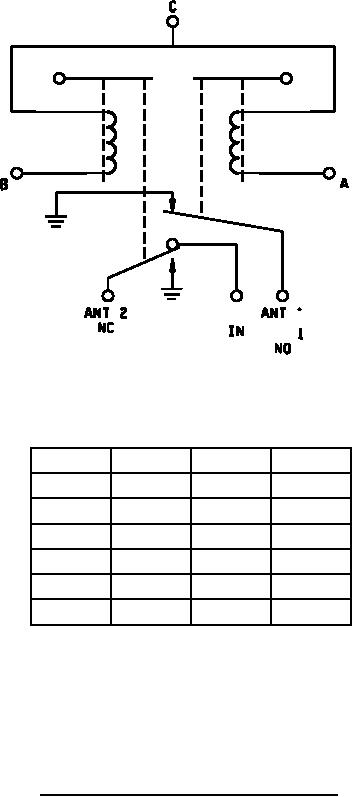

SCHEMATIC
SHOWN IN
DEENERGIZED CONDITION
Inches
mm
Inches
mm
.125
3.18
1.875
47.62
.33
8.38
1.91
48.51
.56
14.22
1.95
49.53
.72
18.29
2.125
53.98
.885
22.48
2.75
69.85
1.125
28.58
3.19
81.03
NOTES:
1. Dimensions are in inches.
2. Metric equivalents (to the nearest 0.01 mm) are given for general information only.
3. Unless otherwise specified, tolerances are ±.010 inch (0.25 mm) for three place decimals and ±.03 inch
(0.76 mm) for two place decimals.
4. Keyway of power connector to be at 12 o'clock position.
5. The centerline of the power connector shall be no higher than the centerline of the switch body.
6. Positive electrical continuity between the switch unit and the individual fasteners shall be assured.
FIGURE 1. Outline and dimensions of switch type SA-521A/A - Continued.
