INCH-POUND
MIL-DTL-39030/21A
14 April 2003
SUPERSEDING
MIL-D-39030/21
22 December 1980
DETAIL SPECIFICATION SHEET
DUMMY LOADS, ELECTRICAL,
TYPE XIV (TAB CONTACT), STRIPLINE, MEDIUM POWER
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification and MIL-DTL-39030.
Inches
mm
.001
0.03
.002
0.05
Dash
.003
0.08
A
B
number
.005
0.13
01
.265
.246
.060
1.52
3.07
.121
02
.140
.121
.140
3.56
03
.265
.246
.200
5.08
.246
6.25
.250
6.35
.265
6.73
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Part or Identifying Number (PIN).

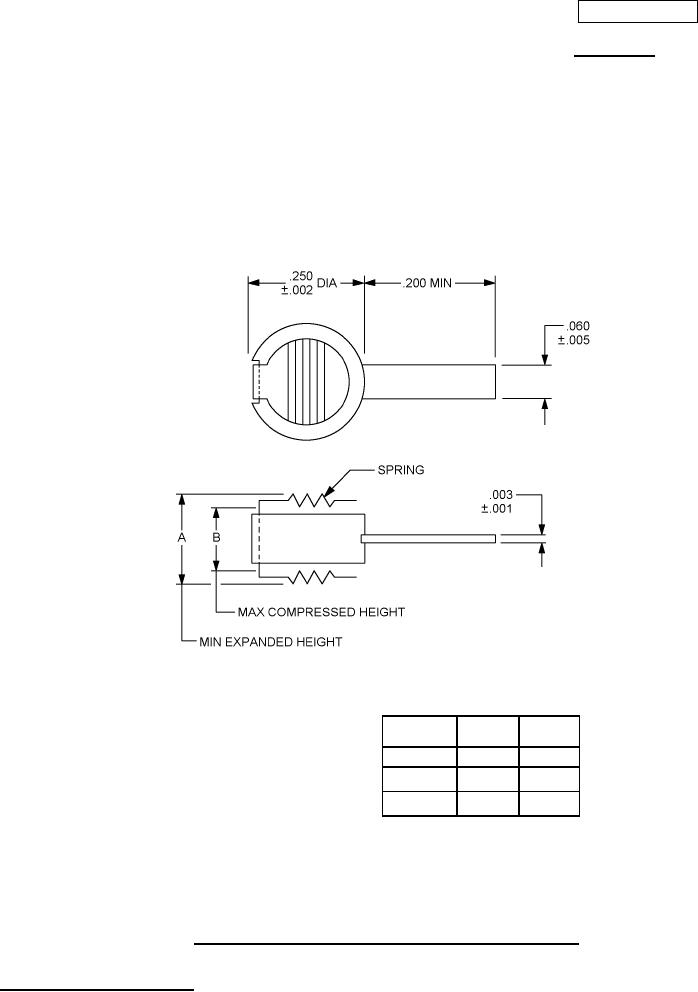

FIGURE 1. Dimensions and configuration, PINs M39030/21-01, -02 and -03.
AMSC N/A
1 of 4
FSC 5985
