INCH-POUND
`
MIL-DTL-39030/23
17 January 2015
DETAIL SPECIFICATION SHEET
DUMMY LOAD, ELECTRICAL,
COAXIAL, TYPE I (SMK), DC-32.0 GHz
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-DTL-39030.
Inches
mm
.312
7.92
.330
8.38
.611
15.52
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Series SMK pin contact interface in accordance with MIL-STD-348.

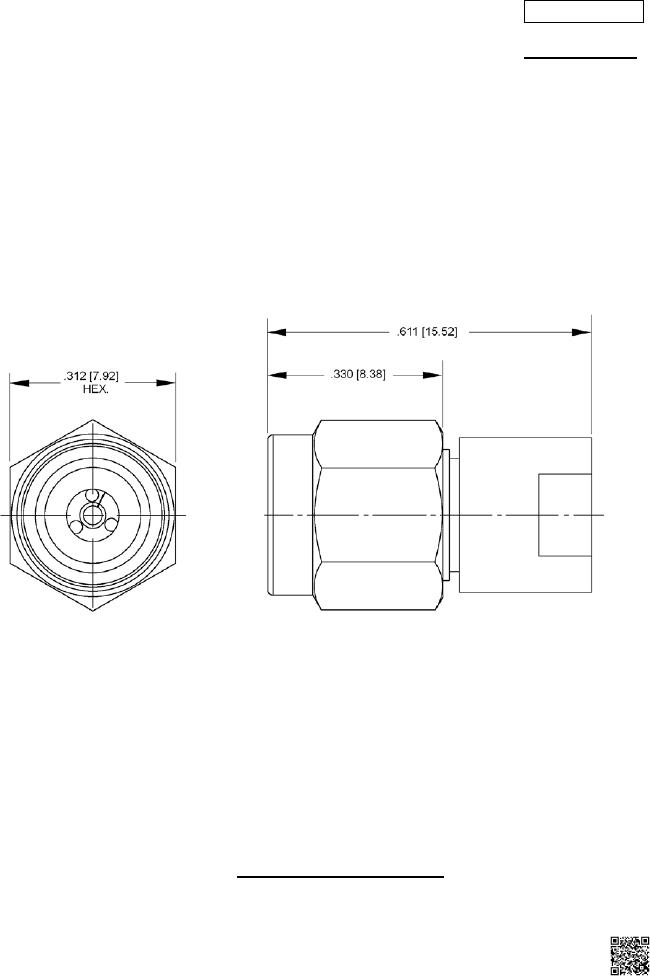

FIGURE 1. Dimensions and configurations.
AMSC N/A
FSC 5985
