INCH-POUND
MIL-DTL-3933/10G
15 August 2011
SUPERSEDING
MIL-DTL-3933/10F
19 November 2009
DETAIL SPECIFICATION SHEET
ATTENUATORS, FIXED, SPACE LEVEL, NON SPACE LEVEL
COAXIAL LINE (SERIES N),
FREQUENCY RANGE: DC TO 18 GHz, CLASS III, MEDIUM POWER
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-3933.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Metric equivalents are in parentheses.

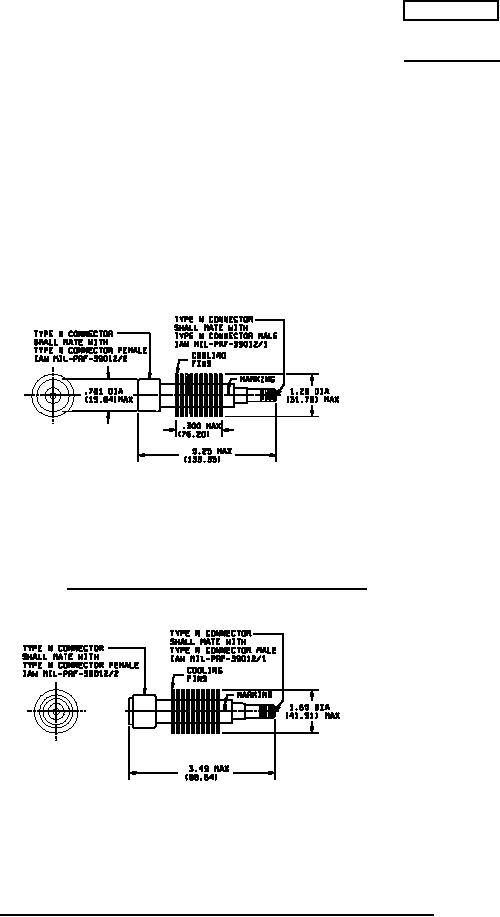

FIGURE 1. Dimensions and configuration for PIN M3933/10-1.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Metric equivalents are in parentheses.
FIGURE 2. Dimensions and configuration for PIN M3933/10-2 through M3933/10-22.
AMSC N/A
FSC 5985
