MIL-DTL-55041/10B

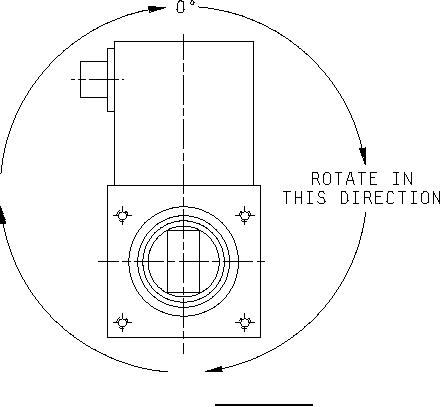

FIGURE 2. Switching time.
NOTE: Switching time: The switch shall be mounted in the position shown; the long axis of the switch
shall be vertical. The switching time shall be taken and recorded. The switch shall be rotated in
45 increments and switching time recorded at each position through 360. The switching time
shall not vary more than 10 percent from the time recorded at 0 (the original position).
NOTE: The switch covered by this specification sheet is NSN 5985-01-040-4182
5
