MIL-DTL-55041/11A
NOTES:
1. Dimensions are in inches.
2. Metric equivalents (in millimeters) are given for general information only.
3. Round corners of case may be squared.
4. Unless otherwise specified, tolerances are � .010 inch (0.25 mm) for three place decimals and
� .03 inch (0.8 mm) for two place decimals.
5. DC polarity must be observed.

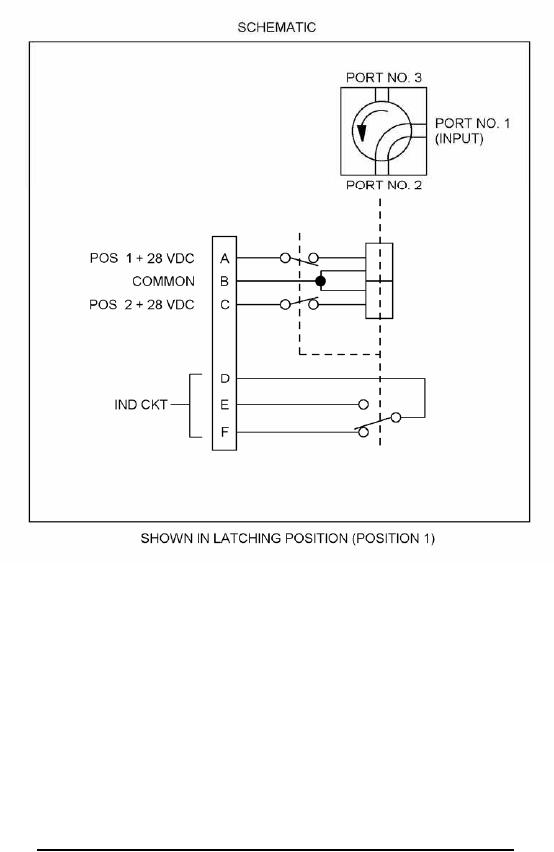

FIGURE 1. Switch configuration and schematic, part numbers M55041/11-001 through -005 - Continued.
