INCH-POUND
MIL-DTL-85/1H
7 February 2014
SUPERSEDING
MIL-DTL-85/1G
26 March 2009
DETAIL SPECIFICATION SHEET
WAVEGUIDES, RIGID, RECTANGULAR
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the waveguides described herein
shall consist of this document and the latest issue of MIL-DTL-85.

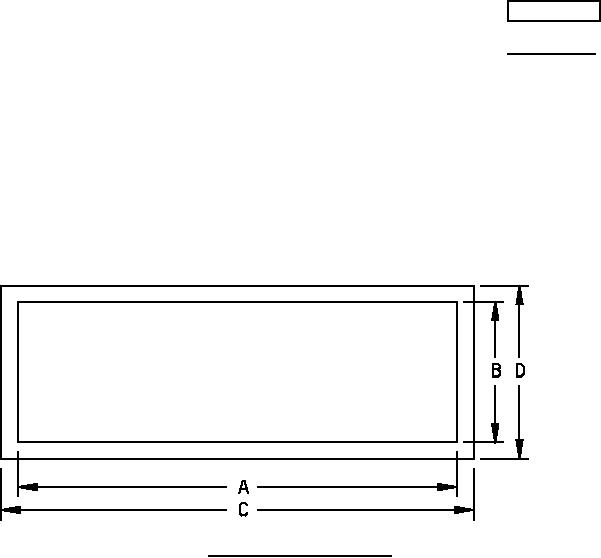

FIGURE 1. Waveguides, rigid, rectangular.
REQUIREMENTS:
Design, construction, and physical dimensions: See figure 1 and table I.
Material: See table I.
Part or Identifying Number (PIN): See table I.
AN nomenclature: See table II.
NOTES:
Cross index and engineering information: See table II.
Cross index of NATO approved types: See table III.
Resistivity of materials: See table IV.
AMSC N/A
FSC 5985
