MIL-F-3922/58D

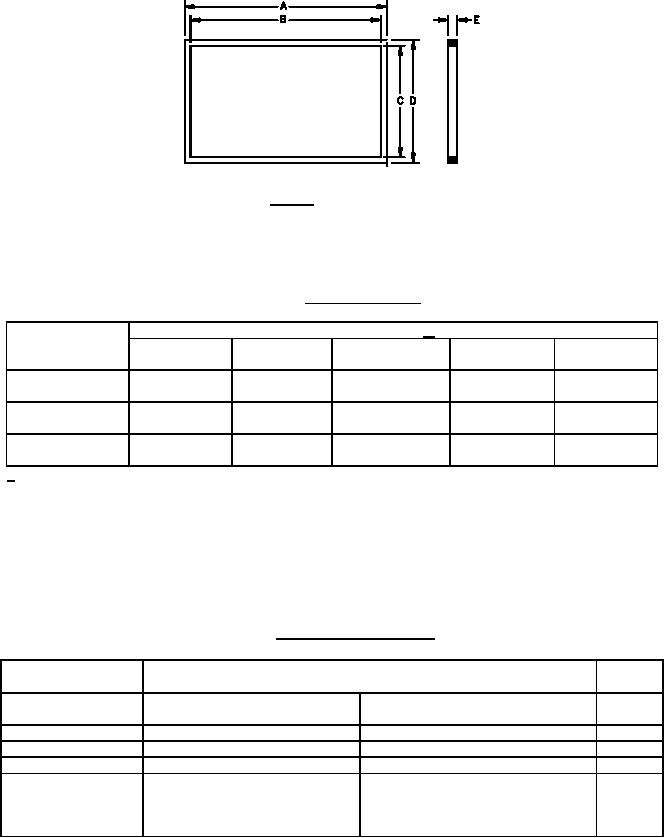

FIGURE 2. Gasket.
TABLE II. Gasket dimensions.
Used with flange
Dimensions1/
dash number
A
B
C
D
E
± .015 (.38)
± .015 (.38)
± .015 (.38)
± .015 (.38)
±.015 (.38)
007, 008
7.390
7.140
3.890 (98.81)
4.140 (105.16)
.187 (4.75)
(187.71)
(181.36)
009, 010
5.172
4.922
2.766 (70.26)
3.015 (76.58)
.187 (4.75)
(131.37)
(125.02)
011, 012
4.266
4.015
2.328 (59.13)
2.578 (65.48)
.187 (4.75)
(108.36)
(101.98)
1/ Metric equivalents are in parentheses.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents ( to the nearest .01 mm) are given for general information only and
are based upon 1 inch = 25.4 mm.
TABLE III. Items supplied with flange.
Item
Item description for part No. M3922/58-
Quantity
007 and 008
009, 010, 011, and 012 Dimensions
Gasket
1
Dimensions as shown in table II
as shown in table II
Hex-head cap screw
(5/16) .3125-18 UNC-2A, 1.25 lg
(1/4) .250- 20 UNC-2A, 1.25 lg
5
Lockwasher
.3125 x .078 thick
.250 x .062 thick
5
Hex nut
(5/16) .3125-18 UNC 2B
(1/4) .250-20 UNC-2B
5
.248 +.000 Dia. X 1.0 inch long
.248 +.000 Dia. X 1.0 inch long
-.001
-.001
Alignment pin
1
Corrosion resistance steel per
Corrosion resistance steel per
SAE-AMS-QQ-S-763, 300 series
SAE-AMS-QQ-S-763, 300 series
4
