INCH-POUND MS25050B
18 January 2005
SUPERSEDING MS25050A
18 June 1976
DETAIL SPECIFICATION SHEET ADAPTER. ANTENNA
This specification sheet is approved for use by all Depart- ments and Agencies of the Department of Defense.
Inactive for new design as of 4 June
1999. No superseding specification.

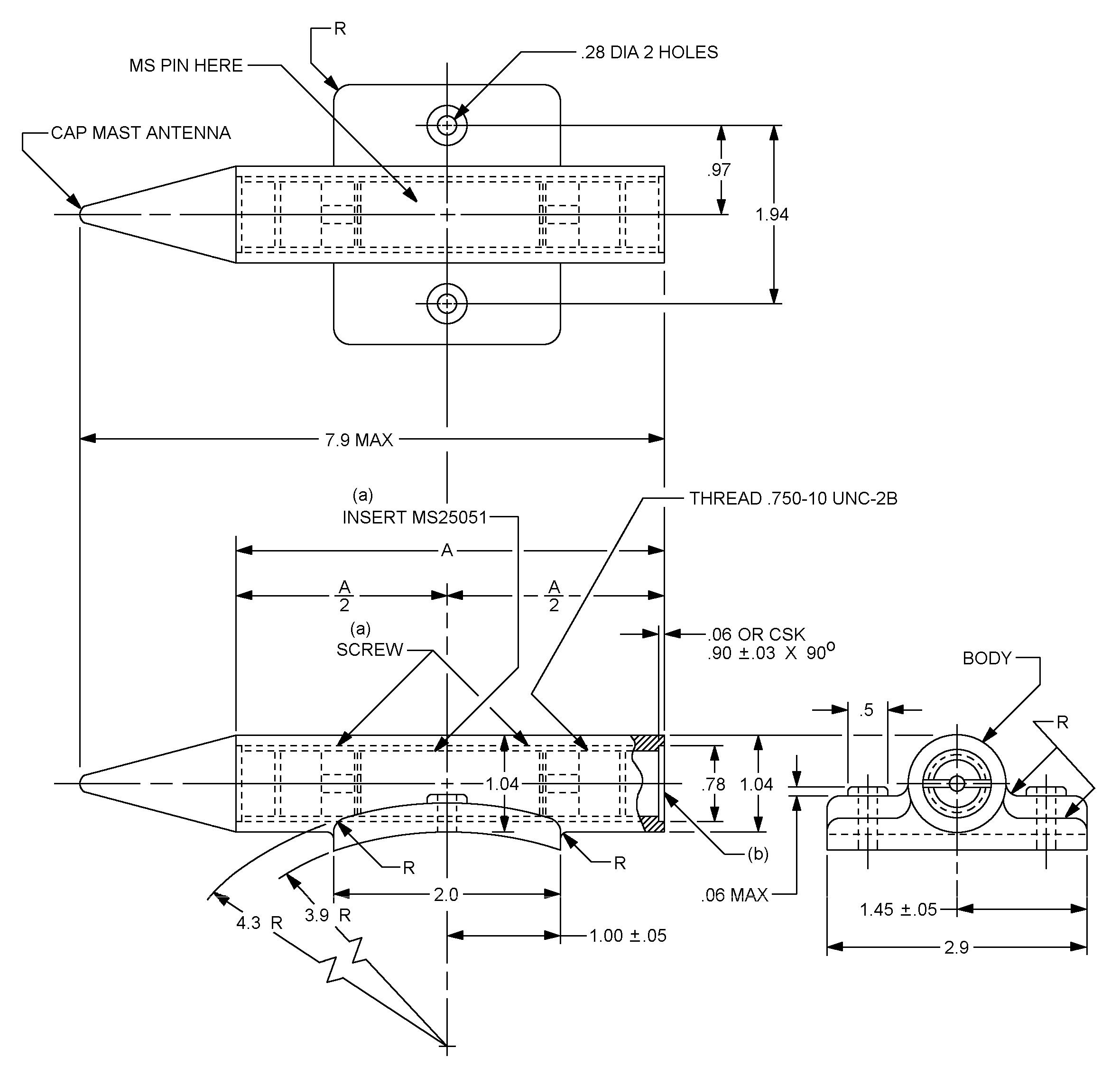

Figure 1. Dimensions and configuration.
(a) Detent must be provided to hold locking ring in forward position against minimum 3 pounds. maximum 10 pounds disengaging force.
(b) Support sleeve MS25056 is a part of the antenna adapter for acquisition purposes.
AMSC N/A 1 of 2 FSC 5985
