INCH-POUND
MIL-DTL-15370/10E
22 October 2012
SUPERSEDING
MIL-DTL-15370/10D
7 May 2008
DETAIL SPECIFICATION SHEET
COUPLERS, DIRECTIONAL (COAXIAL, SMA CONNECTORS)
(.50 to 18 GHz)
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the couplers described herein
shall consist of this specification sheet and MIL-DTL-15370.
Inches
mm
.010
0.25
.093
2.36

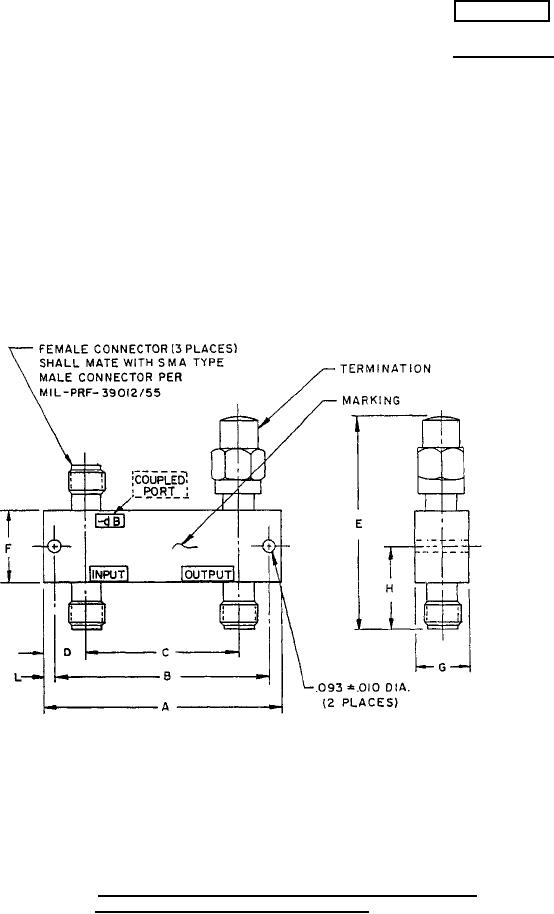

FIGURE 1. Dimensions and configuration for part numbers M15370/10-001
through M15370/10-011, and M15370/10-019.
AMSC N/A
FSC 5985
