MIL-DTL-15370/10E
Inches
mm
.003
0.08
.105
2.67
.38
9.7
NOTES:
1. Sealant thickness, .031 maximum for dash numbers M15370/10-016, M15370/10-017, and M15370/10-018.
2. Four mounting holes are permitted, providing they are symmetrical with the two holes shown.

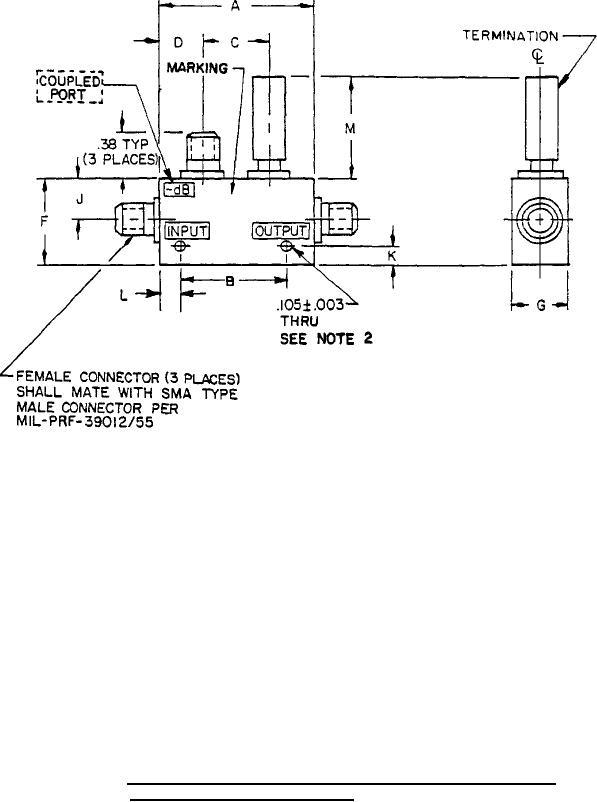

FIGURE 4. Dimensions and configuration for part numbers M15370/10-014 through
M15370/10-018, and M15370/10-020.
