INCH-POUND
MIL-DTL-15370/18C
7 May 2008
SUPERSEDING
MIL-DTL-15370/18B
18 June 2003
DETAIL SPECIFICATION SHEET
COUPLERS, DIRECTIONAL, (PIN PLUG-IN TERMINATION)
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The requirements for acquiring the couplers described herein
shall consist of this specification sheet and MIL-DTL-15370.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Pin numbers are shown for reference - need not appear on the part.
4. Insulator around pin 1 shall be a contrasting color.
5. Unless otherwise specified, tolerance is ± .016 (.41 mm).
6. Termination for P/N M15370/18-001 through M15370/18-003, M15370/18-008:
Input - pin 1
Coupled output - pin 3
Output - pin 4
Ground - pins 2, 5, 7, and 8
Pin 6 is not used in the circuit.

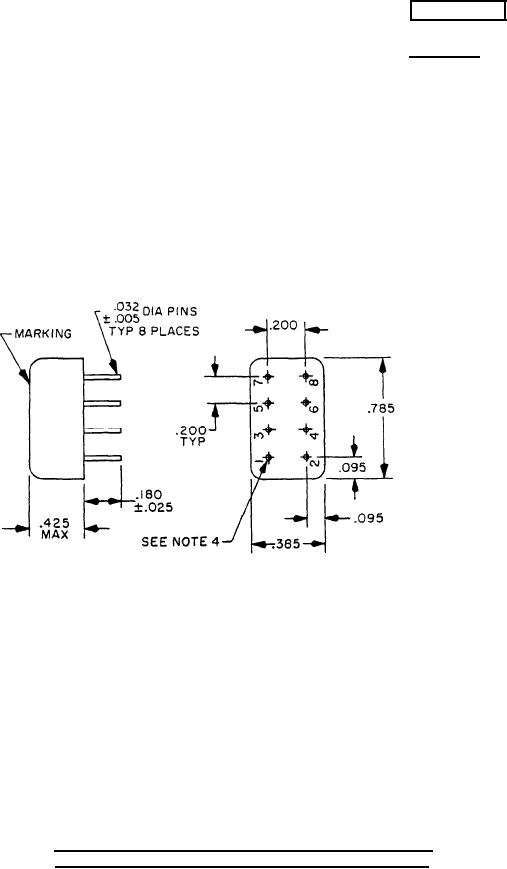

FIGURE 1. Dimensions and configuration for part numbers M15370/18-001
through M15370/18-003, M15370/18-008, and M15370/18-009.
AMSC N/A
FSC 5985
