MIL-DTL-15370/18C
Inches
mm
Inches
mm
.005
0.13
.13
3.3
.015
0.38
.15
3.8
.025
0.64
.190
4.83
.03
0.8
.400
10.20
.030
0.76
.42
10.7
.032
0.81
.73
18.5
.04
1.0
.800
20.3
.115
2.92
1.08
27.4
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Marking to include appropriate labeling of input, output and coupled port, above those respective pins.
4. Pin numbers are shown for reference - need not appear on the part.
5. Termination for P/N M15370/18-005 through M15370/18-007:
Input - pin 1
Coupled output - pin 4
Output - pin 3
Ground - pins 2 and 5
Pin 6 not used in circuit.

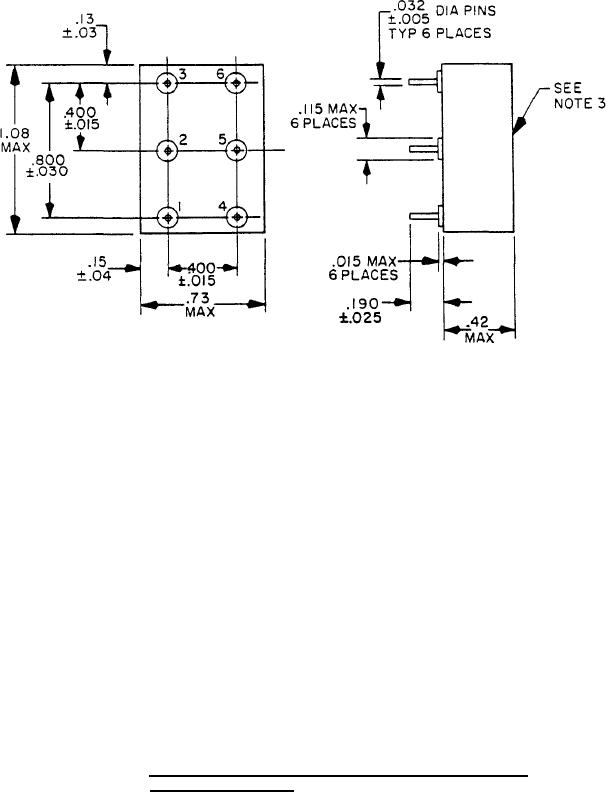

FIGURE 3. Dimensions and configuration for part numbers M15370/18-005
through M15370/18-007.
