MIL-DTL-15370/18C
Inches
mm
.005
0.13
.020
0.51
.032
0.81
.090
2.29
.0200
5.08
.325
8.26
.380
9.65
.780
19.81
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Pin numbers are shown for reference - need not appear on the part.
4. Insulator around pin 1 shall be a contrasting color.
5. Unless otherwise specified, tolerance is ±.016 (0.41 mm).
6. Termination for P/N M15370/18-004:
Input - pin 1
Coupled output - pin 4
Output - pin 5
Ground - pins 2, 3, 5, 7, and 8.

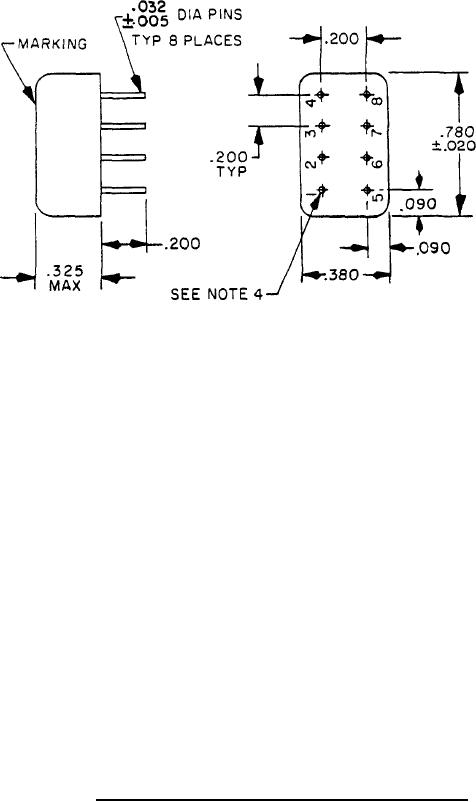

FIGURE 2. Dimensions and configuration for part number M15370/18-004.
2
