INCH-POUND
MIL-DTL-23971/5D
23 April 2013
SUPERSEDING
MIL-DTL-23971/5C
14 May 2007
DETAIL SPECIFICATION SHEET
POWER DIVIDERS, N-WAY, 0 DEGREES, FLAT PACK
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the power divider described herein
shall consist of this specification sheet and MIL-DTL-23971.
Dimensions
Inches
Millimeters
Max
Min
Max
Min
A
N/A
.313
N/A
7.95
B
.41
.35
10.4
8.9
C
.019 dia
.015 dia
0.48 dia
0.38 dia
D
.11
.05
2.8
1.3
E
.11
.09
2.8
2.3
F
.26
.24.
6.6
6.1
G
.36
.34
9.1
8.6
H
.53
.47
13.5
11.9
J
.072
.052
1.83
1.32
K
.125
N/A
3.18
N/A
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Pins that are marked are grounded to the internal circuit of the power divider by the manufacturer.

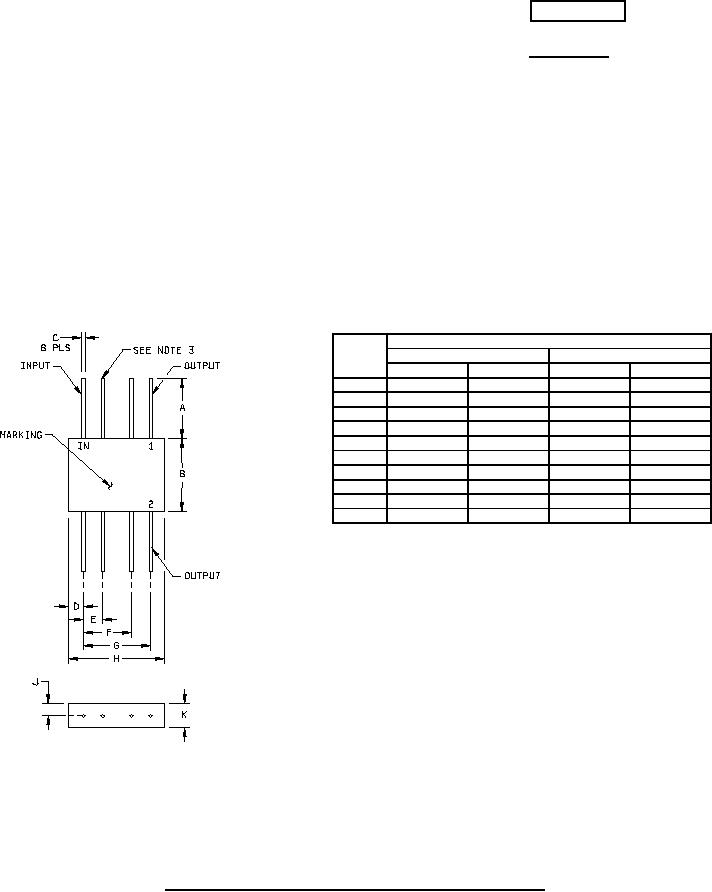

FIGURE 1. Dimensions and configuration, 2-way, dash numbers 01 and 03.
AMSC N/A
FSC 5985
