MIL-DTL-23971/5D
Dimensions
Inches
Millimeters
Max
Min
Max
Min
A
N/A
.313
N/A
7.95
B
.41
.35
10.4
8.9
C
.019 dia
.015 dia
0.48 dia
0.38 dia
D
.11
.05
2.8
1.3
E
.119
.099
3.02
2.51
H
.53
.47
13.5
11.9
J
.072
.052
1.83
1.32
K
.125
N/A
3.18
N/A
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Pins that are marked are grounded to the internal circuit of the power divider by the manufacturer.

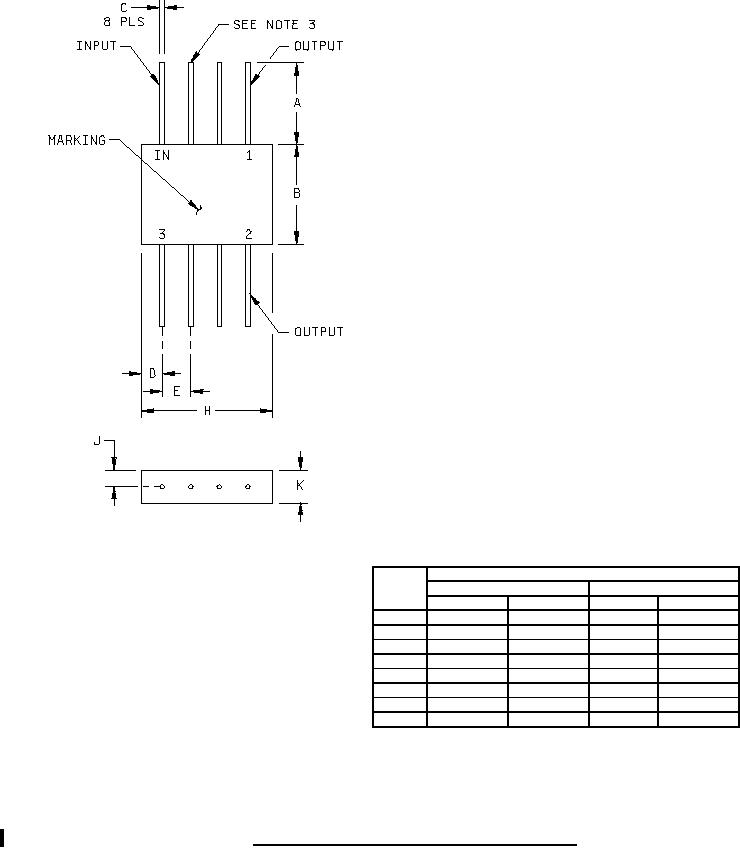

FIGURE 2. Dimensions and configuration 3-way, dash number 02.
