MIL-DTL-23971/6C
Inches
mm
Inches
mm
.009
0.23
.11
2.8
.016
0.41
.110
2.80
.019
0.48
.19
4.8
.028
0.71
.21
5.3
.034
0.86
.40
10.2
.09
2.3
.40
12.7
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only and are based upon 1.00 inch = 25.4 mm.
3. Ground pins are grounded to the internal circuit of the power divider, by the manufacturer.

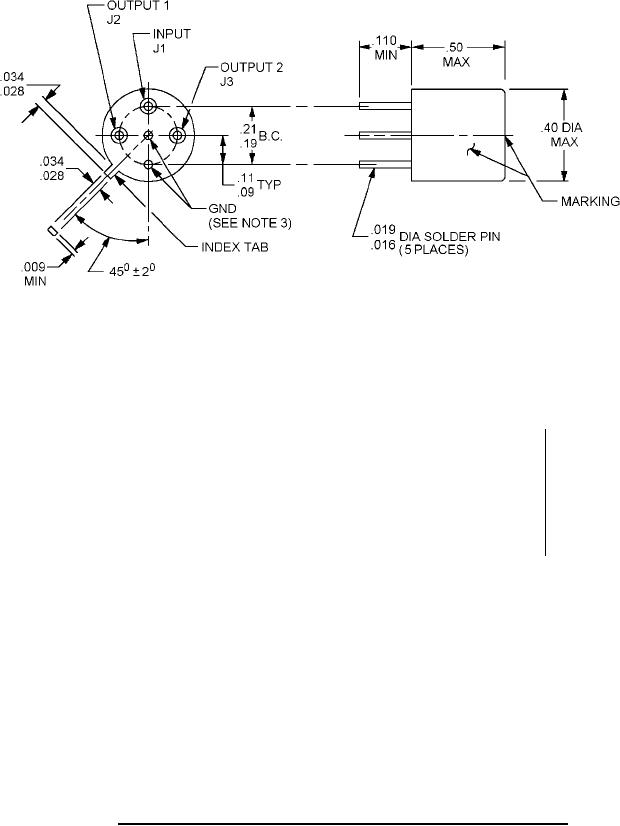

FIGURE 3. Dimensions and configuration, 2-way, dash numbers 02, 04, 05, 06, and 07.
3
