MIL-DTL-23971/6C
Inches
mm
Inches
mm
5.3
.016
0.41
.21
7.6
.019
0.48
.30
8.1
.028
0.71
.32
8.89
.029
0.74
.350
9.52
.034
0.86
.375
10.2
.045
1.14
.40
12.2
.09
2.3
.48
13.2
.11
2.8
.52
.19
4.8
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only and are based upon 1.00 inch = 25.4 mm.
3. Ground pins are grounded to the internal circuit of the power divider, by the manufacturer.

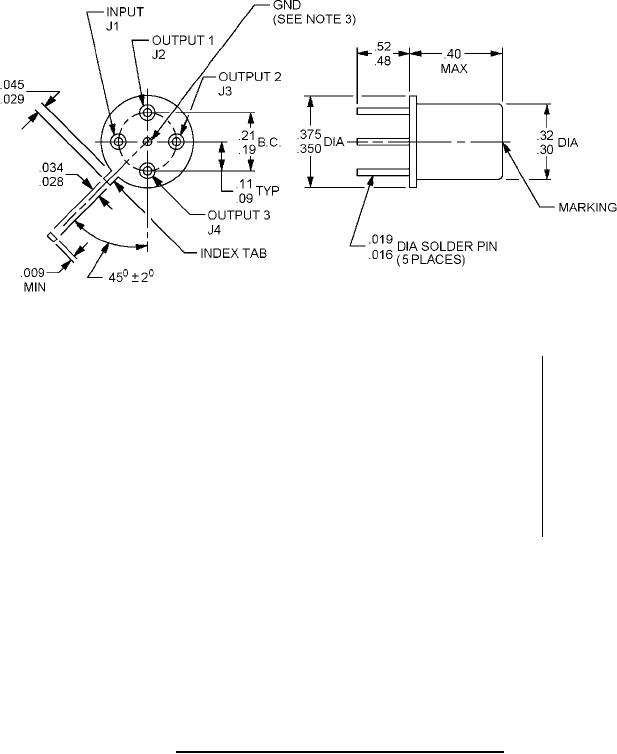

FIGURE 5. Dimensions and configuration, 3-way, dash number 09.
