MIL-DTL-24215 Attenuators, Variable \(Coaxial\), General Specification ForThis specification covers variable continuously and variable in steps attenuators for use as attenuating elements in coaxial lines. These attenuators are used for armed services application in the transmission lines of radar, radio, and associated equipment \(see 6.1\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


. . . . .
MIL-DTL-24215D

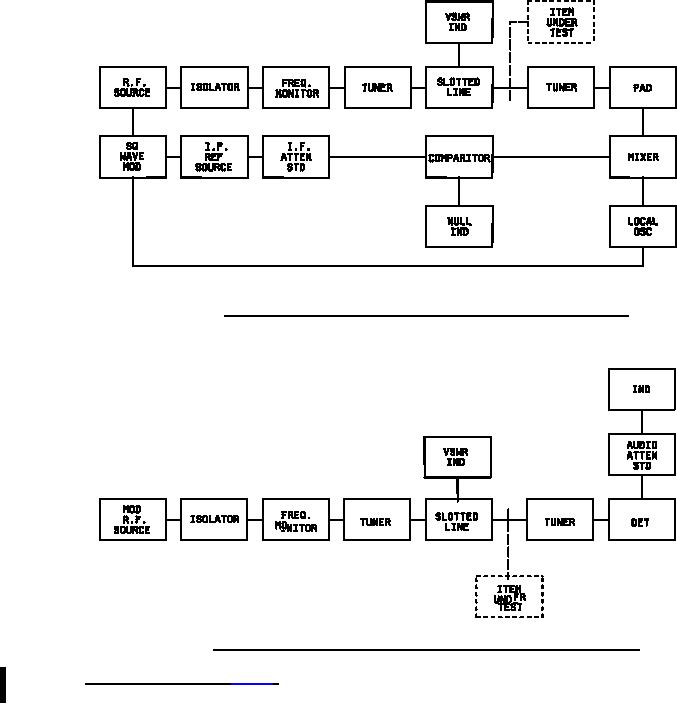

FIGURE 1. Parallel I.F. substitution for the measurement of 20 to 120 dB.
FIGURE 2. Single-channel audio substitution for measurements up to 30 dB.
4.7.7 Salt atmosphere (see 3.5.12). Attenuators shall be subjected to method 101, of MIL-STD-202.
The following shall apply:
a. Salt solution: 20 percent.
b. Special mounting: Not applicable.
c. Test condition letter: B.
d. Measurements after exposure: Attenuators shall be washed, dried, and examined for corrosion
or pitting.
