MIL-DTL-39030/3E
Inches
mm
.005
0.13
.120
3.05
.140
3.56
.25
6.4
.312
7.92
.36
9.1
.85
21.6
2.00
50.8
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Series SMA pin contact interface in accordance with MIL-STD-348.

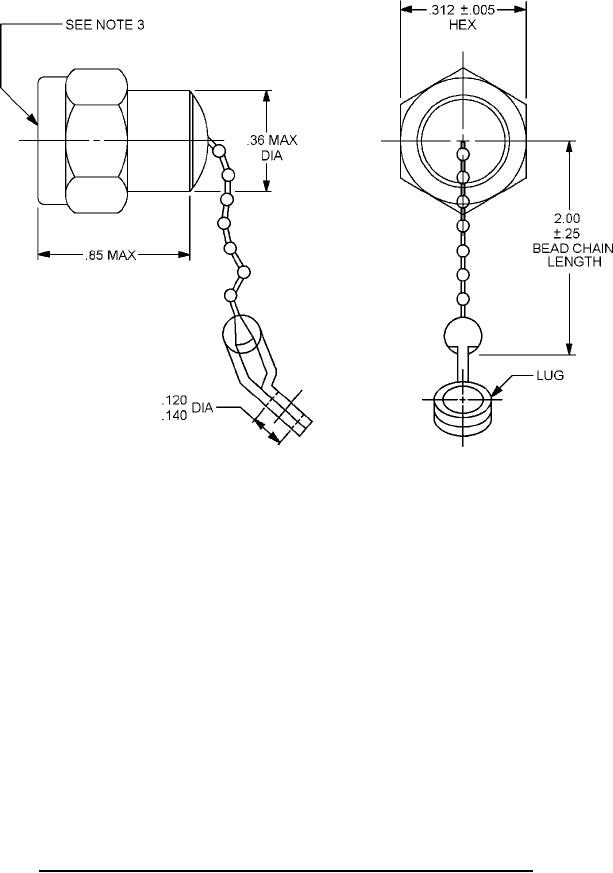

FIGURE 2. Dimensions and configuration, PINs M39030/3-03, -04, -18 and -19 (both N and S).
