MIL-DTL-39030/3E
Inches mm
.005
0.13
.312
7.92
.72
18.3
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Series SMA socket contact interface in accordance with MIL-STD-348.

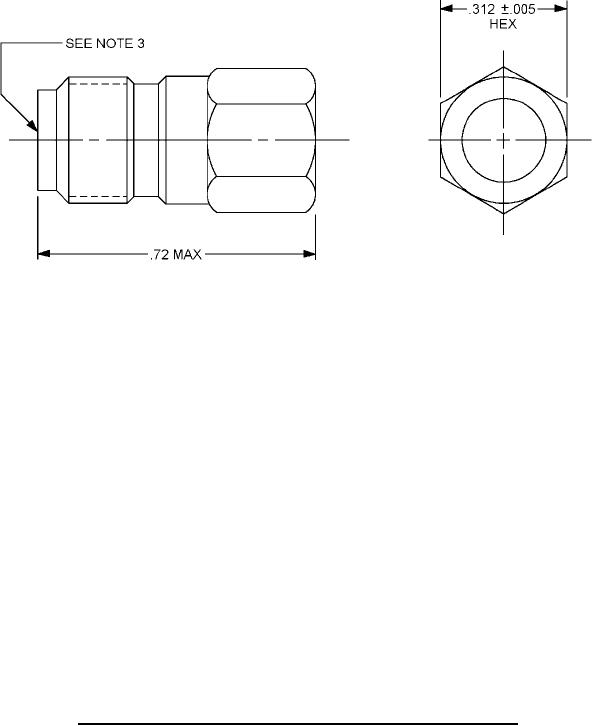

FIGURE 3. Dimensions and configuration, PINs M39030/3-05 and -06 (both N and S).
3
