INCH-POUND
MIL-DTL-3922/54E
23 July 2013
SUPERSEDING
MIL-DTL-3922/54D
23 May 2008
DETAIL SPECIFICATION SHEET
FLANGES, WAVEGUIDE (COVER)
(SQUARE, 4 HOLE)
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
INACTIVE FOR NEW DESIGN
AFTER 18 SEPTEMBER 1998
Requirements for acquiring the flanges described herein
shall consist of this document and MIL-DTL-3922.
Inches
mm
.001
0.02
.002
0.05
.016
0.41
.046
1.17
.116
2.95
NOTES:
1. Dimensions are in inches. Dimensions are in accordance with ASME-Y14.5M.
2. Millimeter equivalents (to the nearest 0.01 mm) are given for general information only and are
based upon 1.00 inch = 25.4 mm.
3. Millimeters are in table.
4. These surfaces to be parallel within .0005 (0.01 mm) to facilitate the use of quick disconnect couplings.
5. Roughness of mating surfaces shall not exceed 63 micro-inches in accordance with ASME-B46.1, except
that flaws shall be included in the roughness height measurement.
6. These surfaces to be parallel within .002 for PIN M3922/54-003 only.

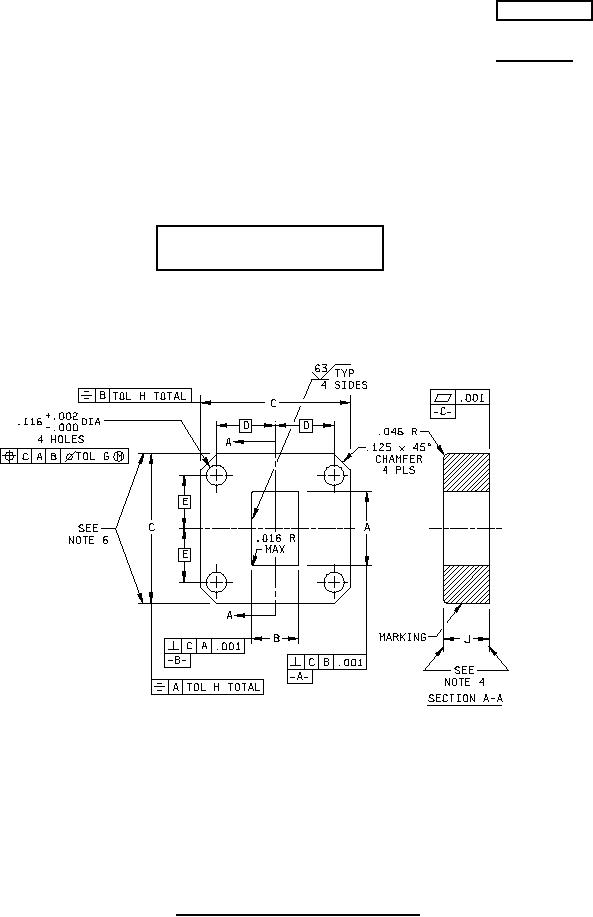

FIGURE 1. Flange configuration (-001 through -004).
