MIL-DTL-3922/54E
Inches
mm
.001
0.02
.003
0.08
.015
0.38
.016
0.41
.044
1.12
.077
1.96
.094
2.39
.125
3.18
NOTES:
1. Dimensions are in inches. Dimensions are in accordance with ASME-Y14.5M.
2. Millimeter equivalents (to the nearest 0.01 mm) are given for general information only and are
based upon 1 inch = 25.4 mm.
3. Millimeters are in table.
4. Roughness of mating surfaces shall not exceed 63 micro-inches in accordance with ASME-B46.1,
except that flaws shall be included in the roughness height measurement.

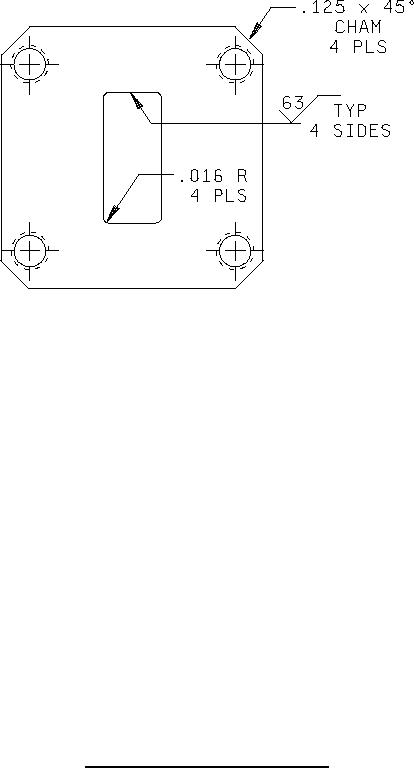

FIGURE 2. Flange configuration (-005 through -016) - Continued.
4
