MIL-DTL-3922/59F
.125 x 45°
CHAM
4 PLS
63 TYP
SEE
4 SIDES
NOTE 6
.016 R
4 PLS
SEE NOTE 6
Inches
mm
.001
.03
.015
.38
.016
.41
.044
1.12
.062
1.57
.077
1.96
.125
3.18
NOTES:
1. Dimensions are in inches.
2. Metric equivalents (to the nearest 0.01 mm) are given for general information only and are based upon
1.00 inch = 25.4 mm.
3. Metric equivalents are in parentheses.
4. These surfaces need to be parallel after drilling and reaming for PINs M3922/59-001 through M3922/59-005 to
facilitate the use of quick disconnect couplings.
5. Roughness of mating surfaces, including seal groove, shall not exceed 63 microinches in accordance with
ASME - B46.1, except that flaws shall be included in the roughness height measurement.
6. Surfaces to be parallel within .002 (0.05 mm) for PIN M3922/59-012 only.

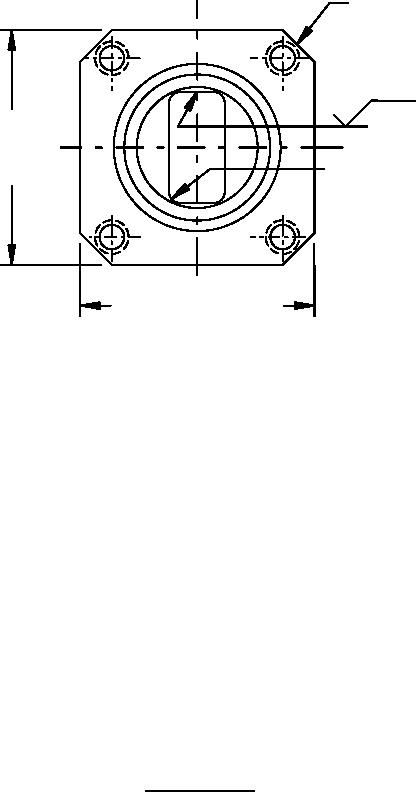

FIGURE 1. Flange configuration - Continued.
2
