INCH-POUND
MIL-DTL-15370/9H
22 October 2012
SUPERSEDING
MIL-DTL-15370/9G
7 May 2008
DETAIL SPECIFICATION SHEET
COUPLERS, DIRECTIONAL (COAXIAL, SMA CONNECTORS)
(1 TO 26.5 GHz)
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the couplers described herein
shall consist of this specification sheet and MIL-DTL-15370.
.104 +.004
-.002 DIA THRU
2 PLACES
Inches
mm
.002
0.05
.004
0.10
.104
2.64
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.

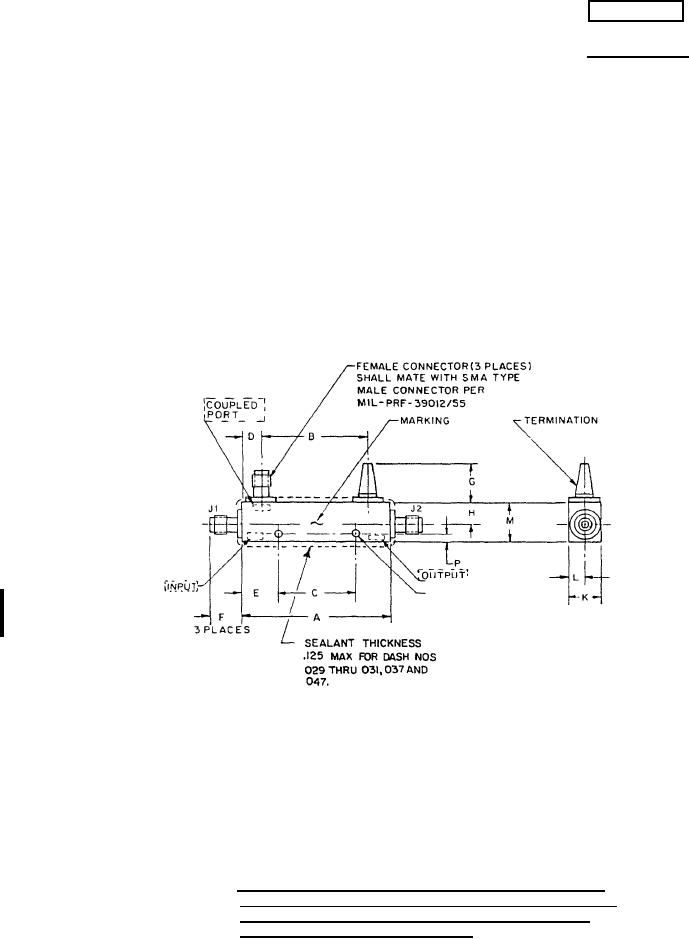

FIGURE 1. Dimensions and configuration for part number M15370/9-001
through M15370/9-008, M15370/9-029 through M15370/9-031,
M15370/9-035 through M15370/9-038, M15370/9-042 and
M15370/9-047 through M15370/9-049.
AMSC N/A
FSC 5985
