MIL-DTL-15370/9H
.140 +.010
-.000 DIA THRU
2 HOLES
Inches
mm
.010
0.25
.140
3.56
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.

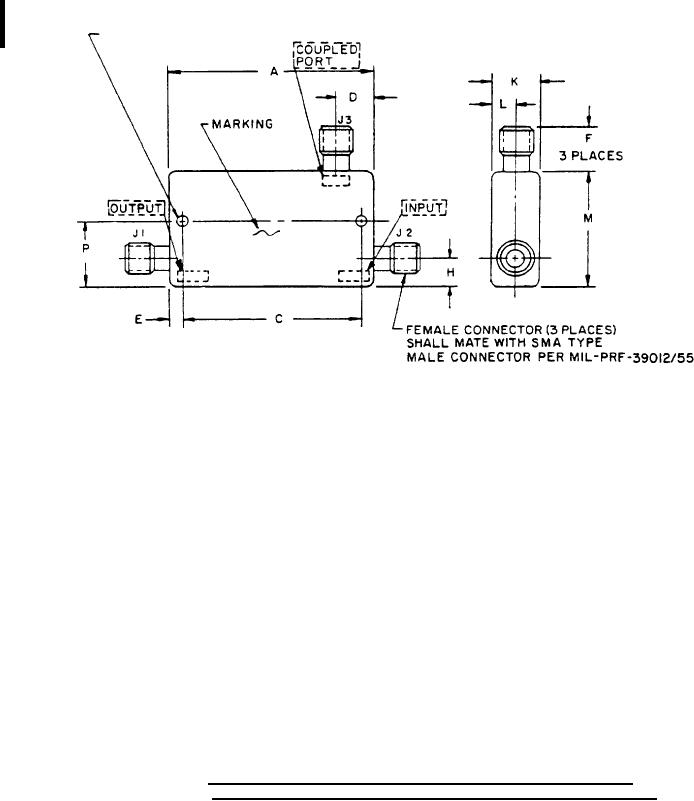

FIGURE 4. Dimensions and configuration for part numbers M15370/9-019 through
M15370/9-021, M15370/9-032 through M15370/9-034 and M15370/9-044.
4
