MIL-DTL-22641F

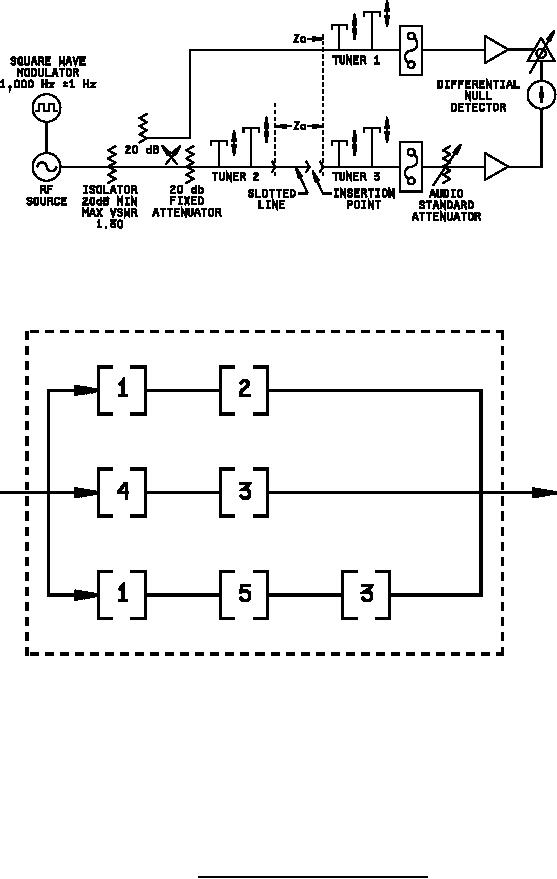

NOTE: Slotted line with low residual reflection, hermaphroditic output fitting compatible with tuner 3 input fitting.

VSWR less than 1.006 + .003F (F in GHz).

NOTES:

1. Standard test adapter with hermaphroditic input fitting compatible with output fitting of slotted line, and output

interface compatible with input interface of adapter to be tested.

2. Standard test adapter of opposite sex to [1] and hermaphroditic output fitting compatible with input fitting of

tuner 3.

3. Standard test adapter with hermaphroditic output fitting compatible with input fitting of tuner 3, and input

interface compatible with output interface of adapter to be tested.

4. Standard test adapter of opposite sex to [3] and hermaphroditic input fitting compatible with output fitting of the

slotted line.

5. Adapter under test.

FIGURE 2. Method of insertion loss measurement.
